Paint & Spray Booth Filters
In addition to spray booth, we also offer various paint booth filters such as pre-filter, pocket filter, floor filter, ceiling filters. They are all made using superior quality materials, featuring high filtration performance. The spray booth filters are available with standard specifications, and can be also customized based on customer needs.

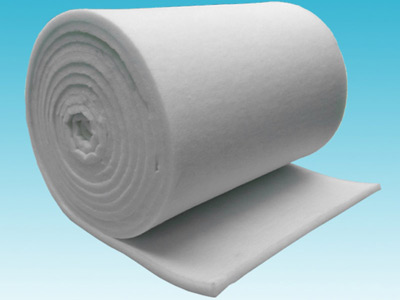

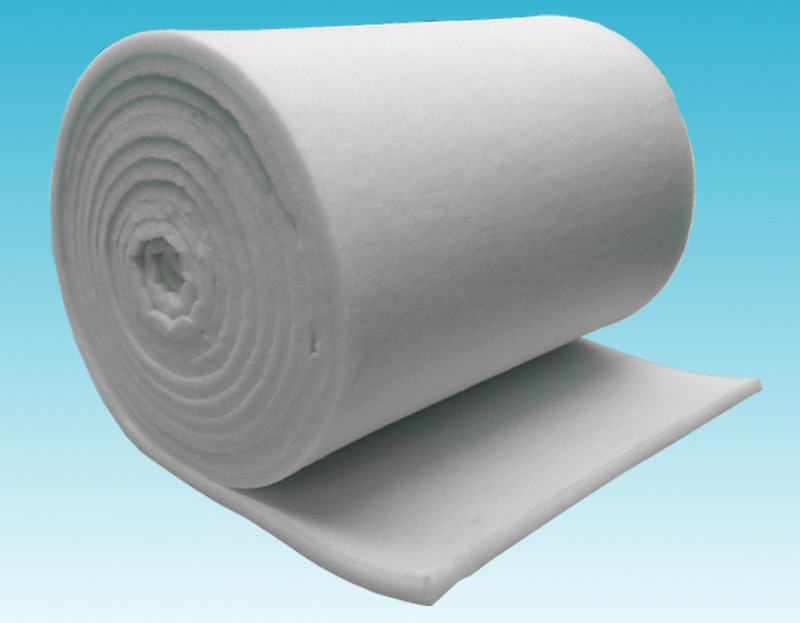

Spray Booth Pre-Filter (G2, EU2)
Features
- Made using polyester fibers with a gradual increase of fiber density
- The filtration efficiency values are certified according to EN779.
- Anti-humidity: 100% r.F., washable
- Heat resistance: 80℃/176℉
- Non-flammability, self-extinguishing according to DIN53438 F1
- Particle filtering size range: ≥5μm
- Supplied in roll or sheet

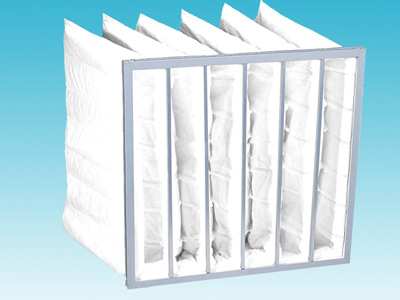

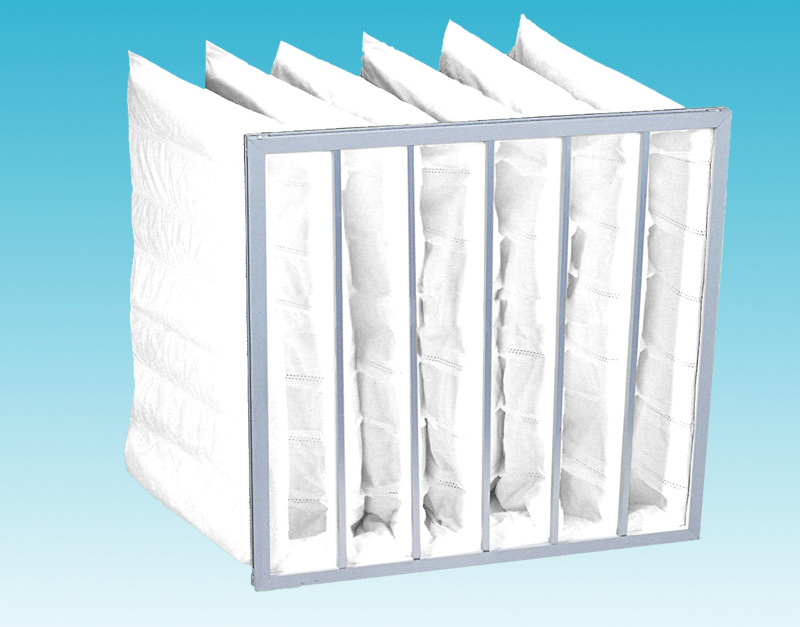

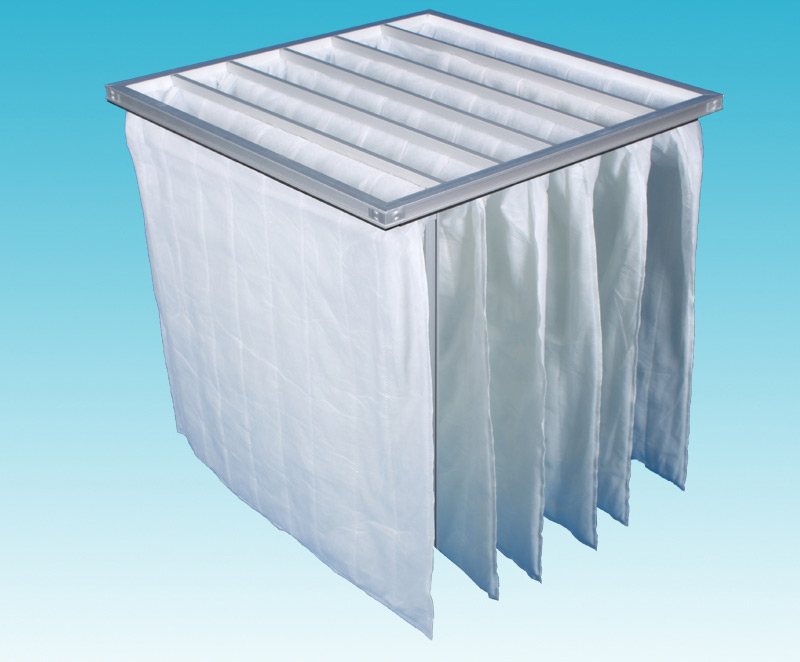

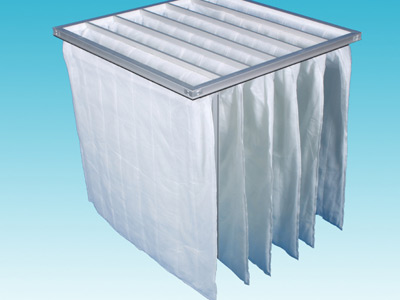

Spray Booth Pocket Filter
Features
- Made using ultra-fine synthetic fibers
- Filter media contains electrostatic fibers.
- Ultrasonic welding technology for pockets provides high sealing performance and high strength.
- Frame: aluminum alloy, stainless steel or steel sheet coated with zinc
- Efficiency class (EN779): F5, F6, F7, F8, F9
- Heat resistance: 100℃
- Relative humidity: 100%
- High dust-holding capacity
- Good breathability
- Optional filtration efficiencies for pocket filter: 35%, 45%, 65%, 85%, 95%
- Long service life

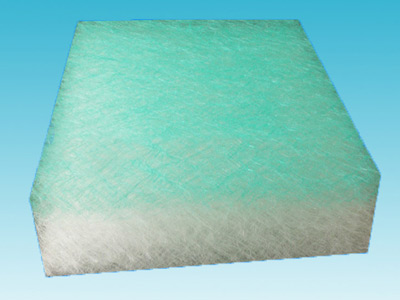

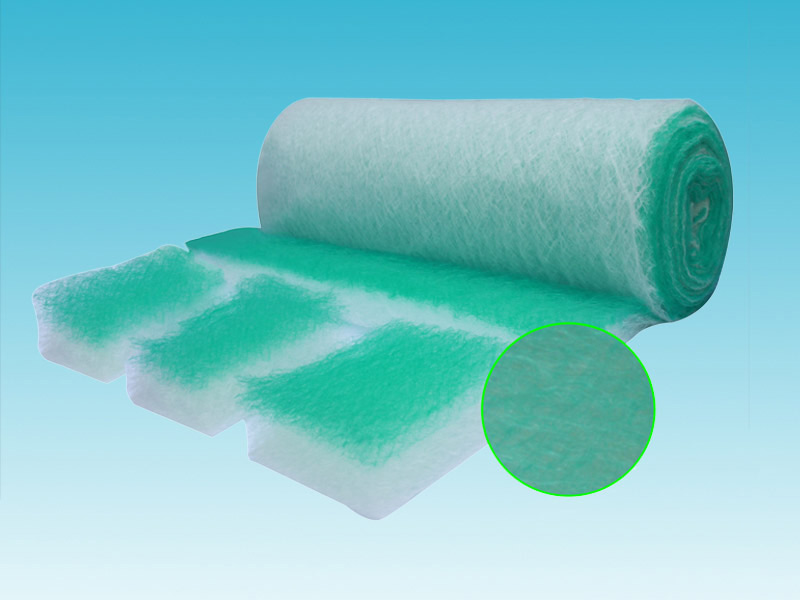

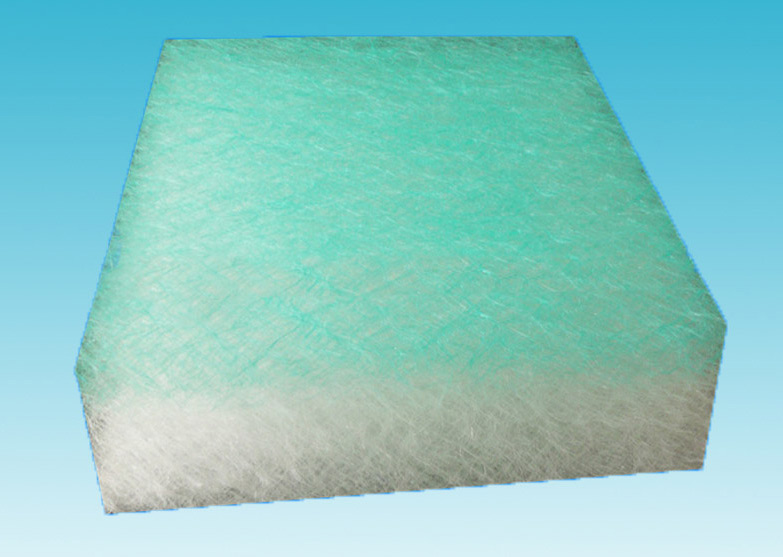

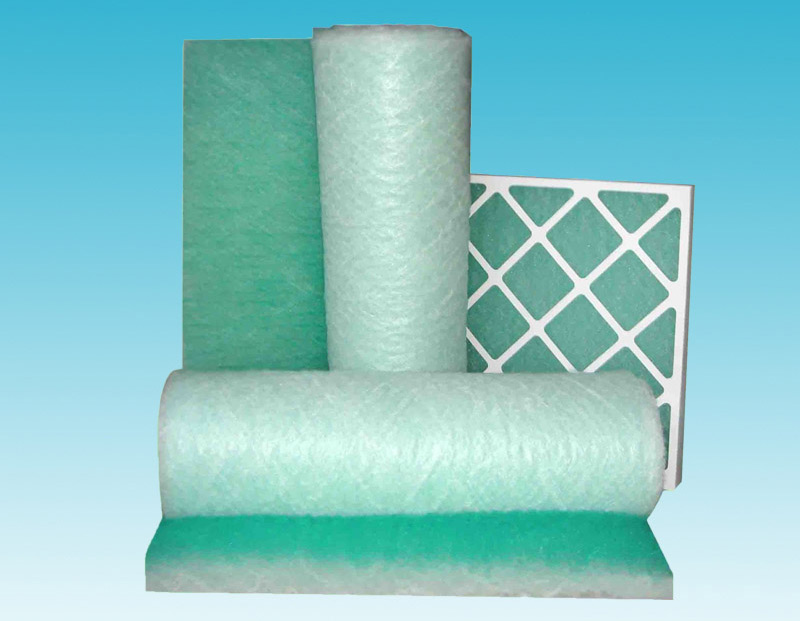

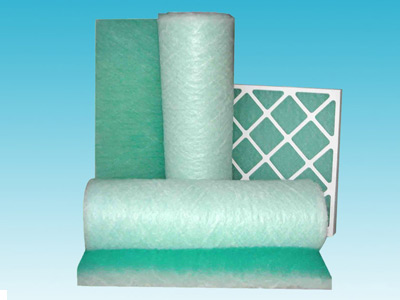

Paint Booth Floor Filter (G3, EU3)
Features
- Made using fiberglass with a gradual increase of fiber density
- Low compressibility keeps its shape and makes fiber purified air effectively.
- With a high absorbency level, the floor filter is ideally used during large-area painting.
- With progressive structure, the density of the fiber layers increases towards the clean air inside. This provides higher dust holding capacity.
- The filtration efficiency values are certified according to EN779.
- Heat resistance: 170℃
- Supplied in roll or sheet

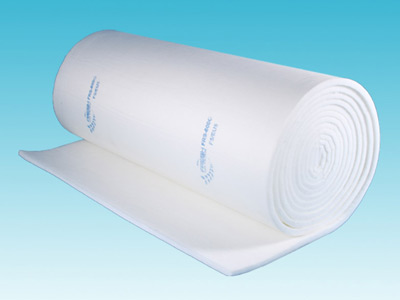

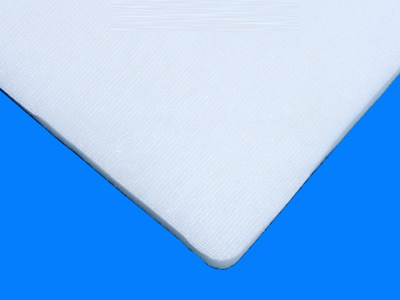

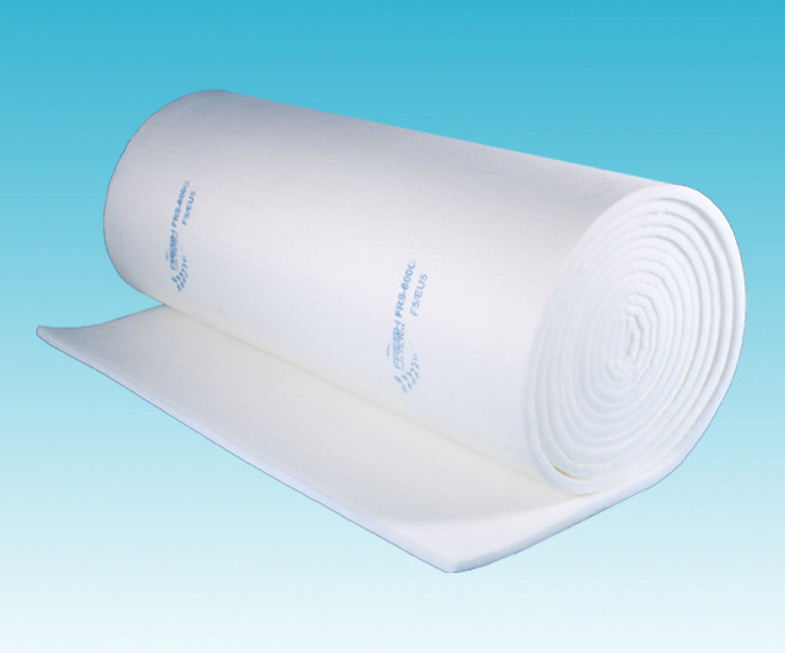

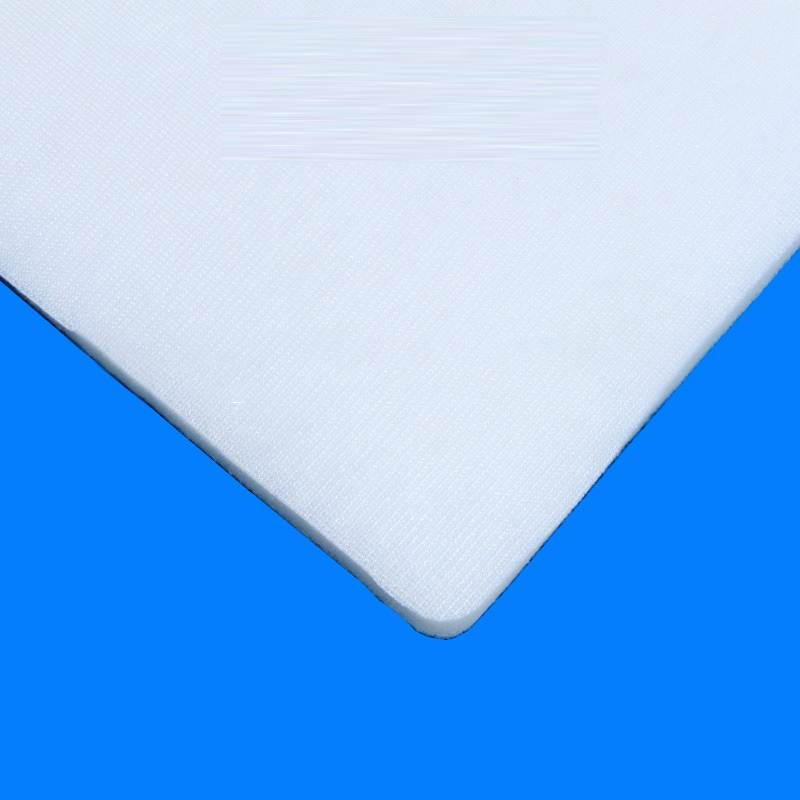

Spray Booth Ceiling Filter (F5, EU5)
Features
- Made using polyester fibers with a gradual increase of fiber density
- Reinforced with wire mesh or nonwoven fabric for windward side of the filter
- The filtration efficiency values are certified according to EN779.
- Anti-humidity: 100% r.F.
- Heat resistance: 80℃/176℉
- Non-flammability, self-extinguishing according to DIN53438 F1
- Particle filtering size range: ≥1μm
- Supplied in roll or sheet

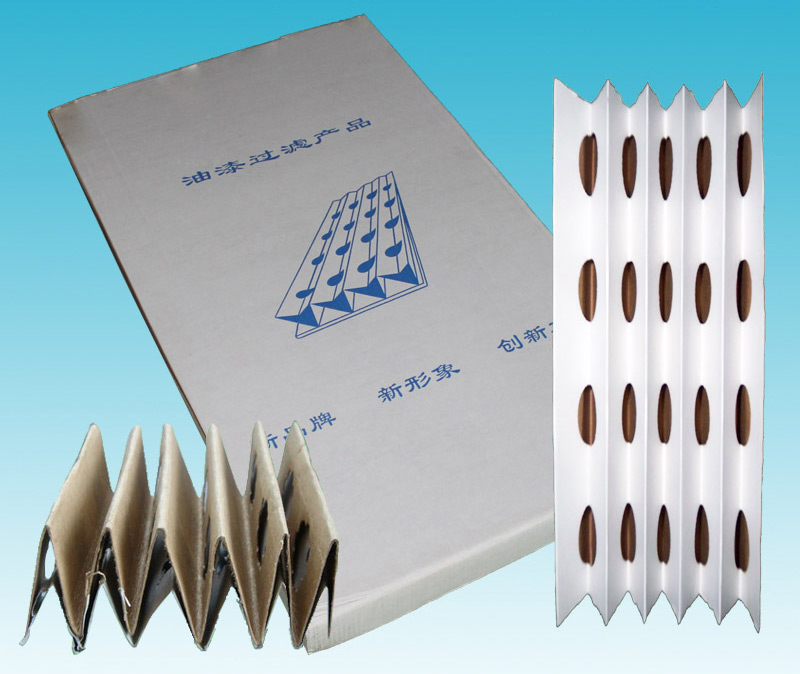

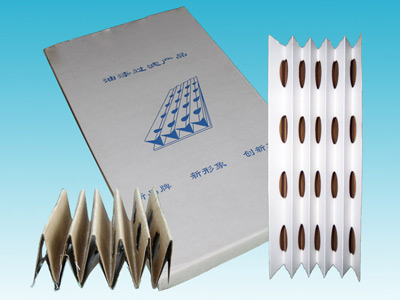

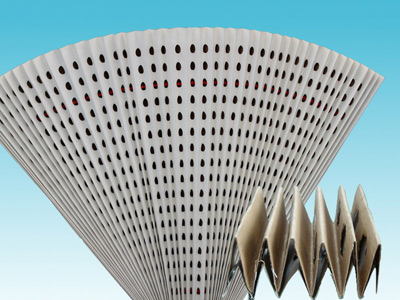

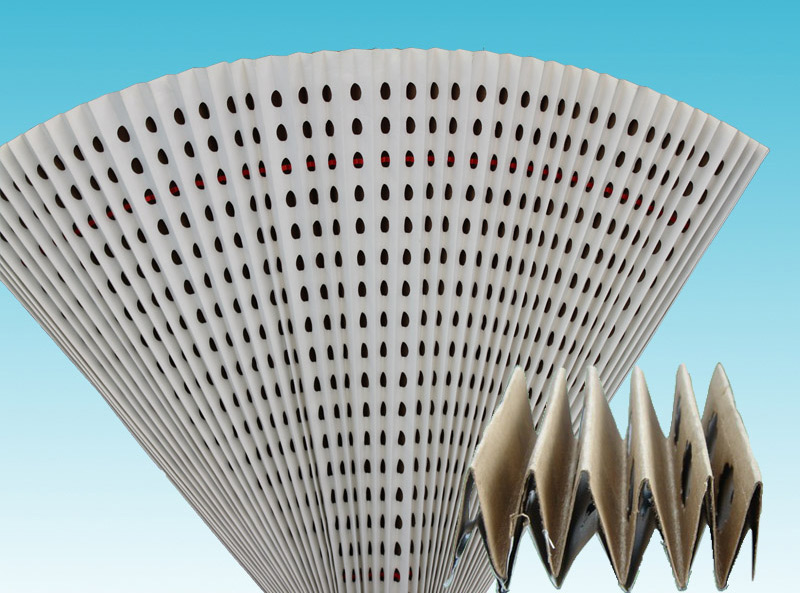

Spray Booth Filter Paper
Features
- Stapled and glued construction for high strength and long service life
- With superior spray booth filtering performance, the filter paper can collect up to 6 times the capacity of common type filters.
- High paint holding capacity
- Low resistance and high filtration efficiency
- Can be continuously used for 500-600 hours
- Conforms to DIN53438 K1
- For better filtration efficiency, the fiberglass and synthetic cotton can be added on the inlet side of the filter.
- The filter paper can be designed with outer frame upon request.
Established in 1994, GZ Guangli has been focusing on manufacturing automotive paint booths, bus paint booths and automotive body paint lines for almost three decades. Among the current competition in the country, we are the oldest car spray booth manufacturing factory. Our manufacturing processes for paint booth production covers sheet metal processing, machining, punching, bending, welding, cutting, etc. GZ Guangli is well-known in the industry as it is at the forefront of the productivity and sales over the years in the domestic paint booth market. Our paint booths have been awarded the CE certificate, CCS (China Classification Society) certificate, ETL certificate, CU-TR certificate, SGS certificate, etc. We have provided products and service for a number of customers in automotive industry, such as GAC Toyota, Fiat, GAC Mitsubishi, Dongfeng Peugeot Citroen, Chery Automobile, JAC, Southeast Motor, BMW, Audi, FAW Toyota, FAW Mazda, FAW Hongqi, and more.
