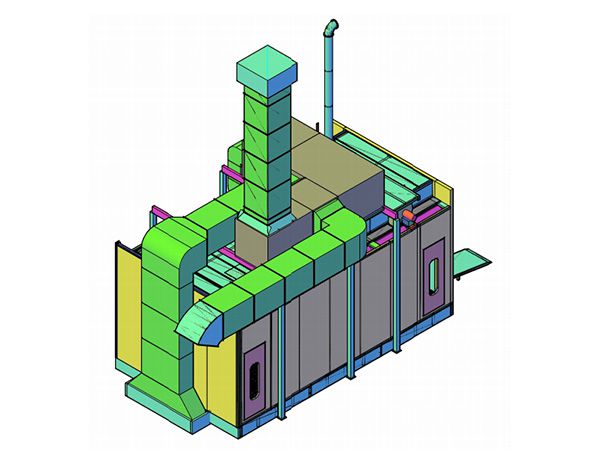

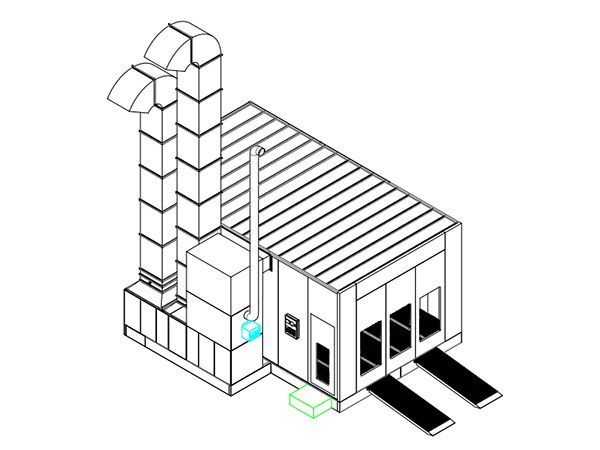

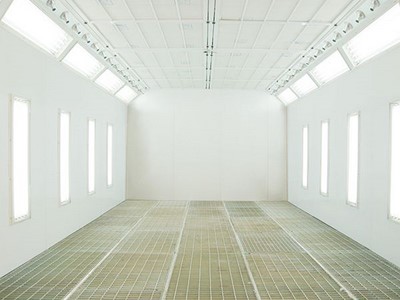

The size of every paint booth is custom manufactured to accommodate your installation site, budget and product being painted.
Before starting the production of paint booth, we design an effective airflow style to dry painted surfaces rapidly, avoiding negative pressure and dead air spaces caused by high filter resistance that can impact the painting effect.

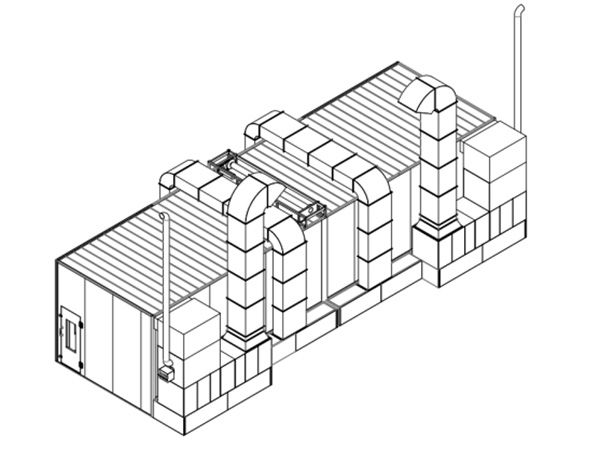

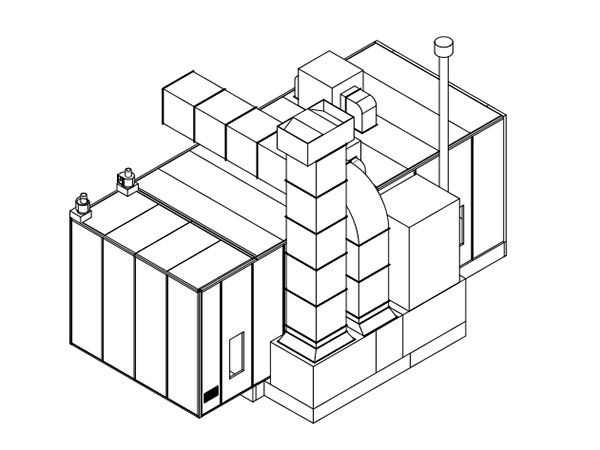

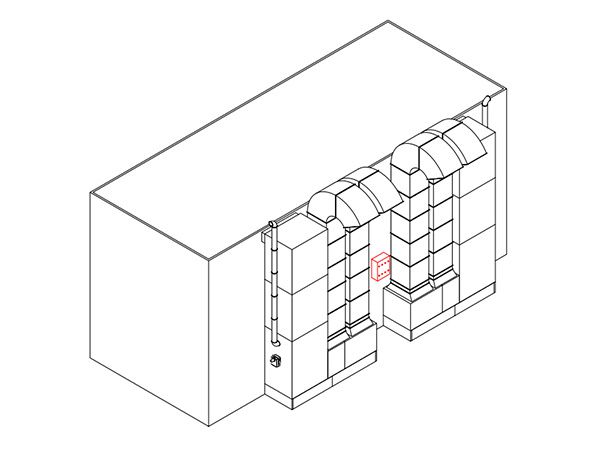

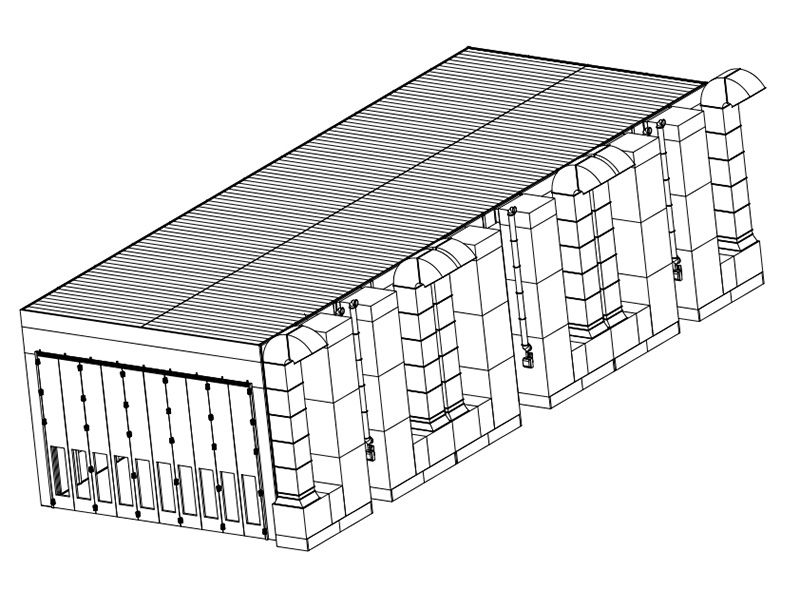

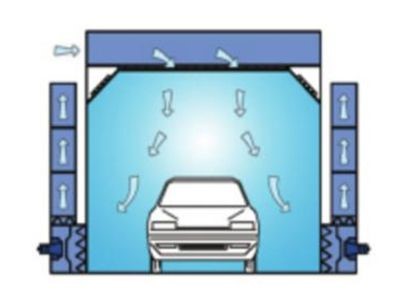

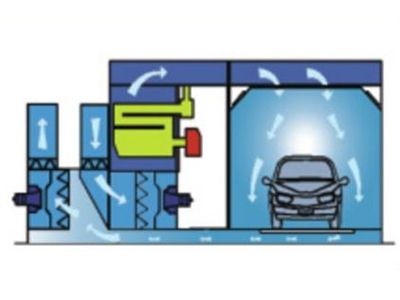

Full downdraft
Semi-downdraft
Side downdraft

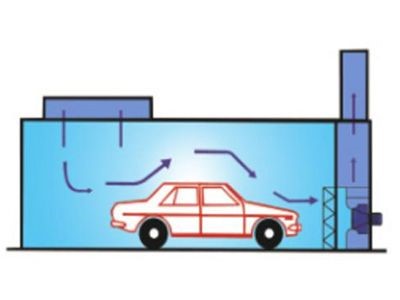

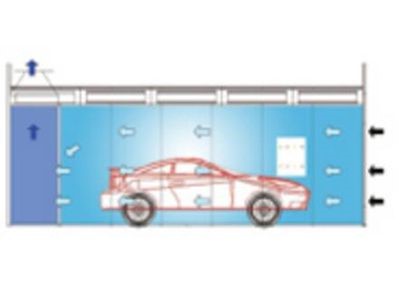

Crossdraft

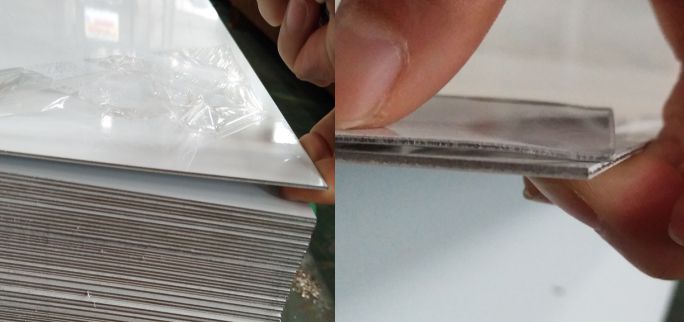

We offer sheet metal with thickness options of 0.326mm, 0.426mm, 0.6mm, 0.9mm to meet specific demands on rigidity and strength of wall panels.
Machine-made wall panel

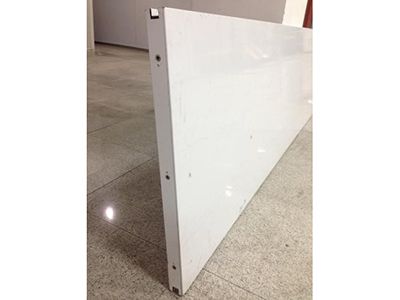

Manual-made wall panelOur wall panels are manufactured utilizing Italian automatic wall panel production line, featuring high precision and durability. All wall panels are double edge banded for superior look, and male & female clip-in system allows easy assembly of panels while ensuring perfect joining.
On the basis of common oil-based paint booth, we adopt air acceleration system to speed up the drying time of waterborne and solvent-based paints and to increase the productivity. Waterborne paint booth is equipped with four 0.75kw centrifugal fans to enable the hot air flowing at a higher velocity over the vehicle. As it turns out, the water is evaporated quickly from the surface of the painted times, thus accelerating the drying process while providing smooth paint surface.

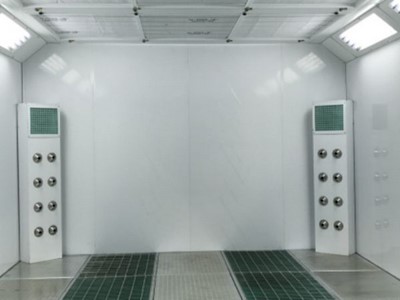

1. Ceiling mounted air acceleration system
The air acceleration system features air nozzles which are laid at a 45 degree angle on both sides inside the booth, enabling the heat to be distributed evenly over the vehicle. The uniform balance of air ventilation is guaranteed by adding two sets of air ducts placed below the upper lights on both sides, each set of duct has 20 vents and every 10 vents have a centrifugal fan.

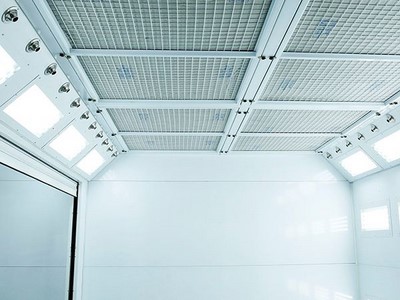

Ceiling mounted air acceleration system integrates light box, light fixtures and air duct, the blowers are mounted at ceiling plenum.
Installation at a 45 degree angle on both sides of the booth

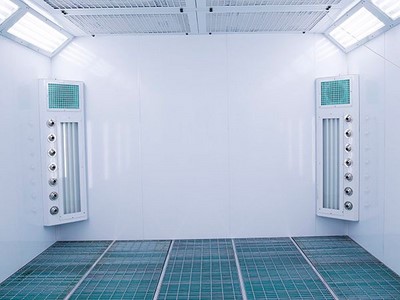

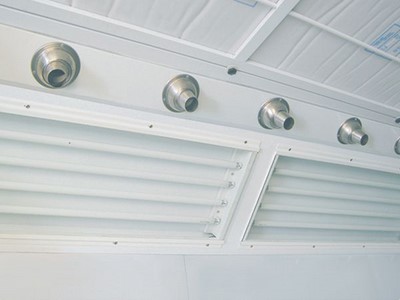

Stainless steel air nozzles2. Corner mounted blowers with light fixture
3. Corner mounted blowers without light fixture

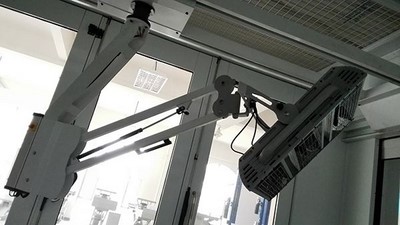

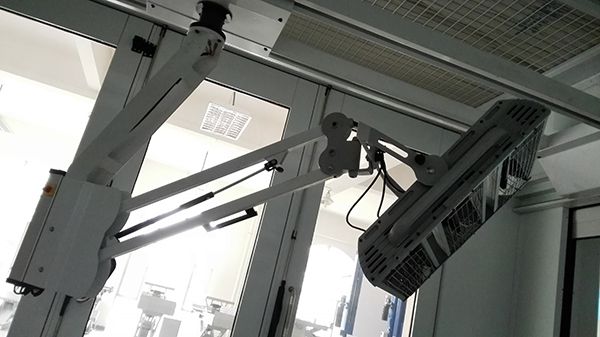

| Model | GL304 |
| Curing area | 6.9×4×2.7m |

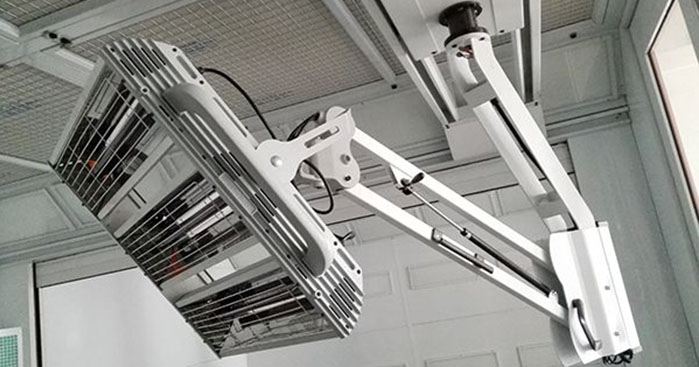

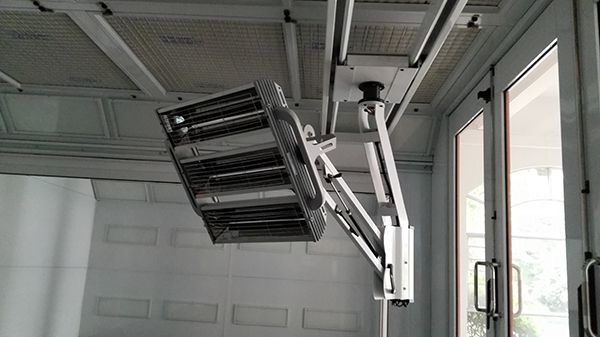

| Lamp tube type | Short wave quartz halogen lamp tubes |
| Lamp tube quantity | 3pcs×1000W |
| Power supply | 220V,50HZ |
| Operation power | 9V |
| Curing distance | 700mm |

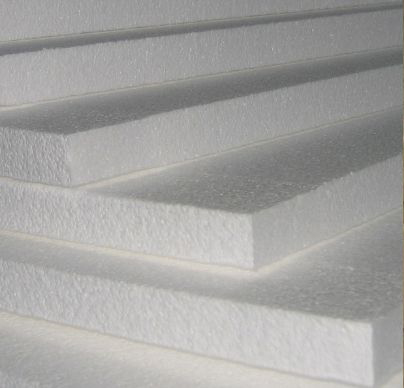

EPS

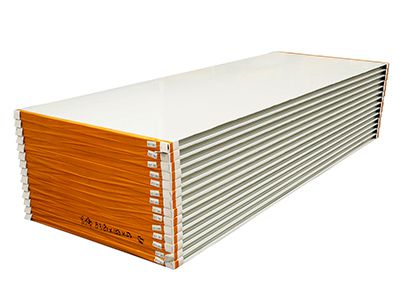

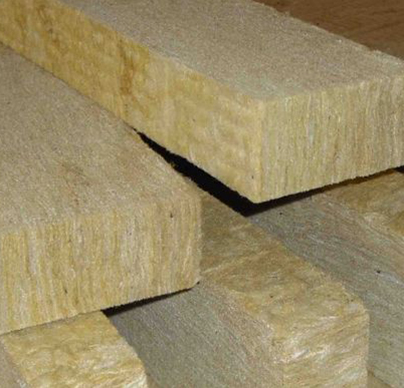

RockwoolWe offer two options of insulation materials, i.e. EPS and rockwool, you can choose the insulation materials according to your budget or local standard. Rockwool has better thermal insulation performance.
