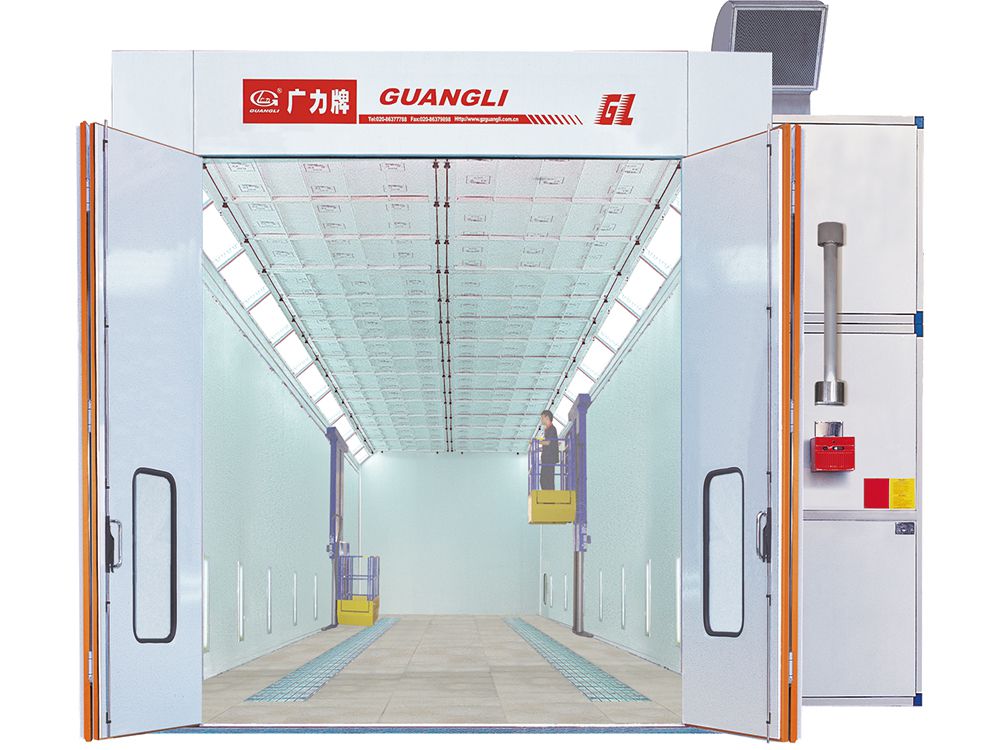

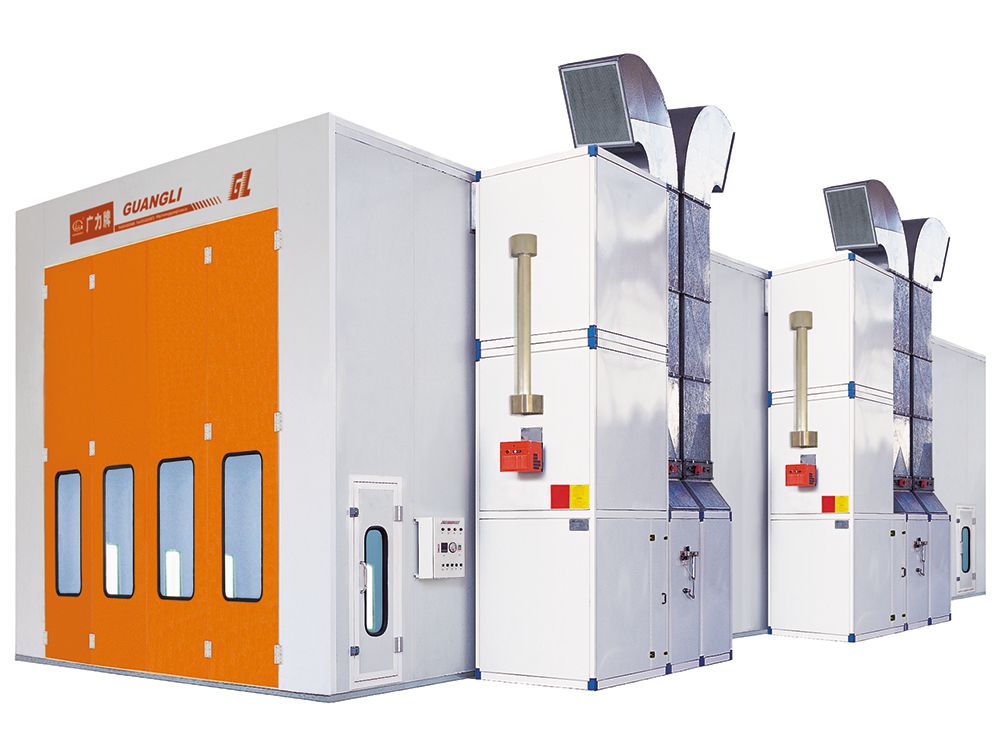

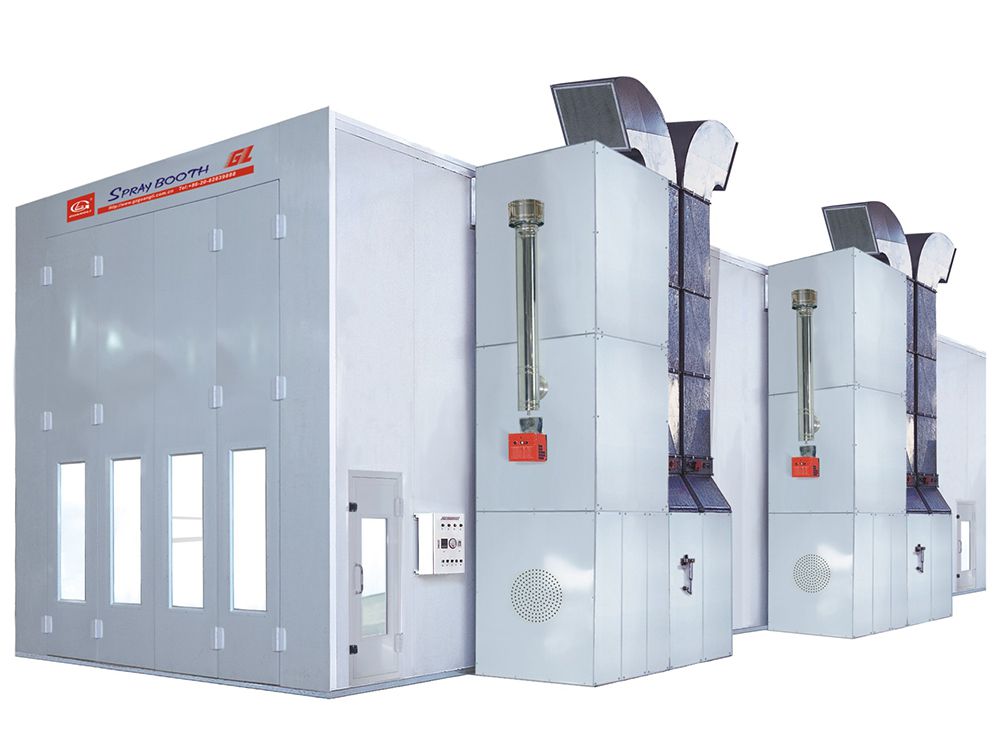

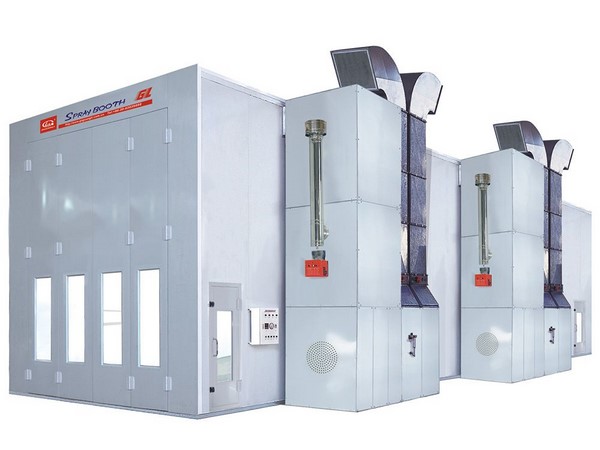

Paint Booth, GL10 Series
Spray Paint Booth for Truck, Bus and Train Painting

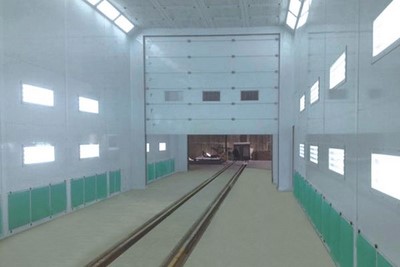

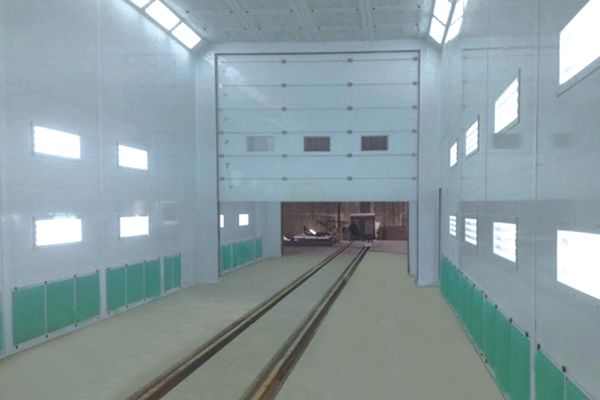

Large Equipment Paint Booth
Large Equipment Paint Booth Large Equipment Paint Booth Large Equipment Paint Booth Large Equipment Paint Booth

When it comes to automotive spray booths, auto body shop owners usually think cars. But at GZ Guangli, you can also find large vehicle paint booths which are designed for trucks, buses and trains. Various options of airflow styles are available in our spray paint booths to meet your individual needs. Whether you need a pitted downdraft paint booth, side downdraft paint booth, or semi-downdraft paint booth, GZ Guangli is always your trustworthy choice.

Inquiry

Specifications

  • Exterior dimensions: 15.2×6.7×5.0m
  • Interior dimensions: 15.0×5.0×4.4m
  • Access door width: 4.0m
  • Access door height: 4.0m
  • Airflow: 72,000m 3 /h
  • Air speed: 0.25-0.35m/s
  • Curing temperature: 60℃-80℃
  • Power: 50kw
  • Applicable vehicle: bus, truck, train, large equipment, etc.

Standard Configurations

  • Basement: downdraft airflow concrete pit (prepared by customer), 2-row reinforced grating;
  • Wall panel: EPS insulated steel wall panel (rockwool insulation is optional);
  • Paint booth door: steel facing + insulation core, 4 access doors and 2 personnel doors;
  • Lighting system: upper lights are 20*4*18W LED light tubes, mid lights are 8*4*18W LED light tubes, lower lights are 8*4*18W LED light tubes;
  • Fan unit: two sets, each set contains one 11kw intake fan and one 11kw exhaust fan, equipped with VCD damper;
  • Heating: Riello RG5S oil burner (other burner models are optional), with heat exchanger;
  • Electric control: imported electrical components, star delta starting of motor;

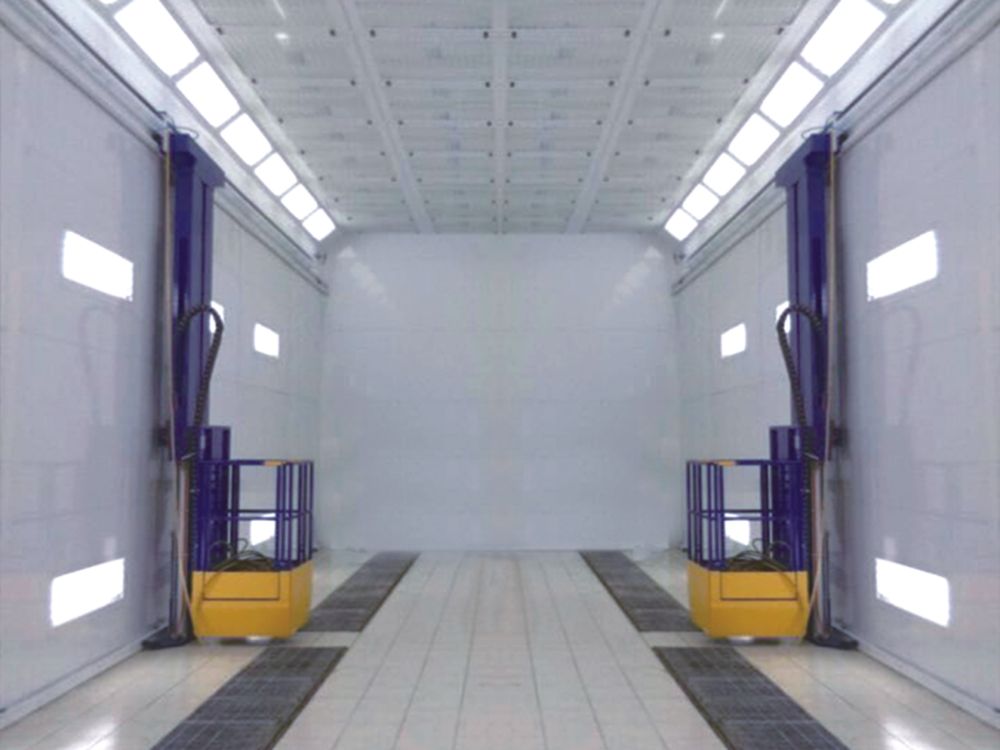

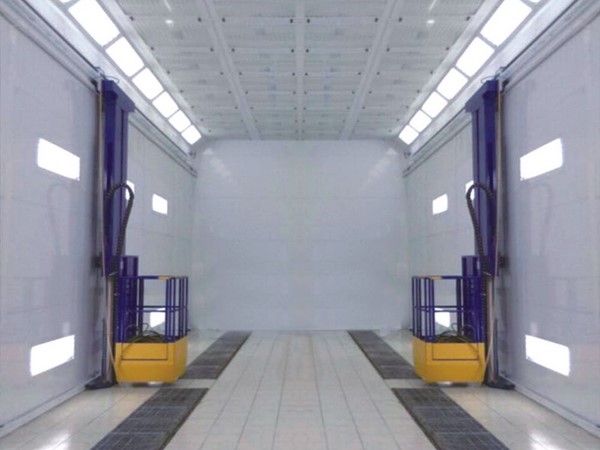

Pitted downdraft paint booth Pitted downdraft paint booth

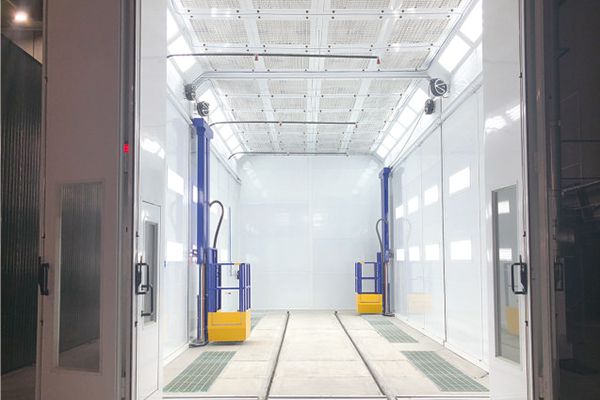

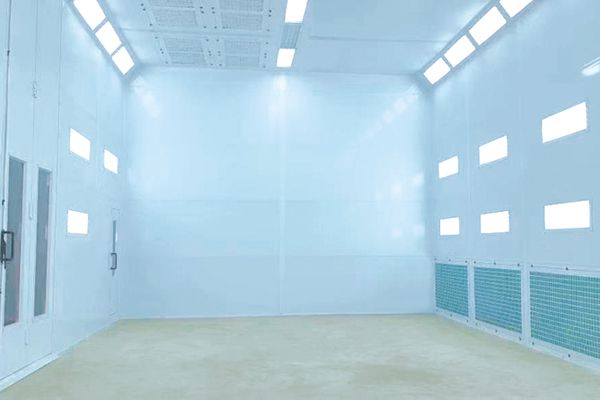

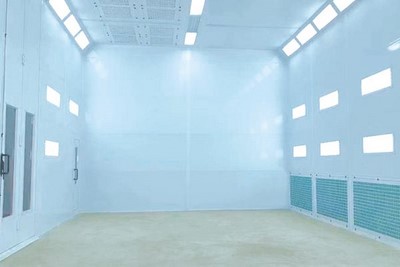

Side downdraft paint booth Side downdraft paint booth

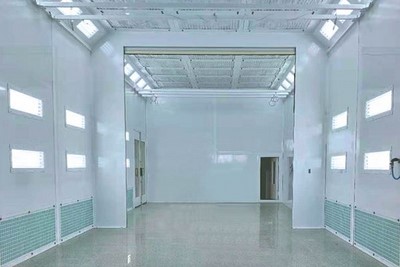

Semi-downdraft paint booth Semi-downdraft paint booth

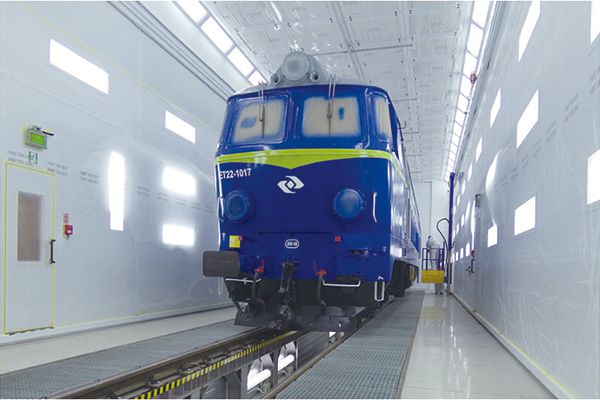

We also designs and manufactures ultra-large industrial paint booth tailored to your specific needs.

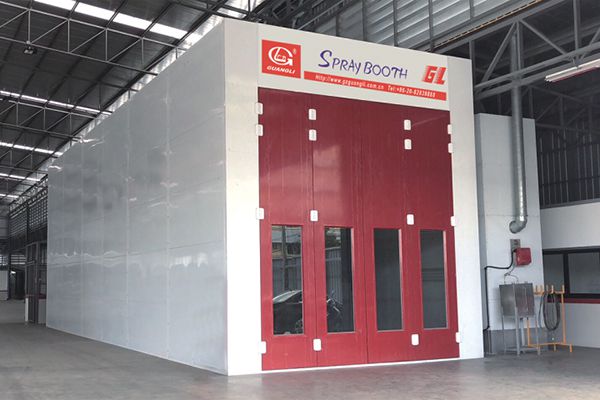

Large Equipment Paint Booth

We pride ourselves on our expertise in manufacturing large capacity paint booths. We can build this type of industrial spray booths to accommodate a range of large equipment such as trains, buses, trucks, as well as heavy vehicles, which can fully satisfy your automotive repair and maintenance needs. Backed by our state-of-the-art technology, our designing and manufacturing capabilities in large equipment paint booth industry is large enough to provide solutions adapted to customer’s installation site conditions and environmental status, with taking into consideration the practicality, safety, economy and energy efficiency of the paint booth.

Access Doors of Ultra-large Industrial Paint Booth

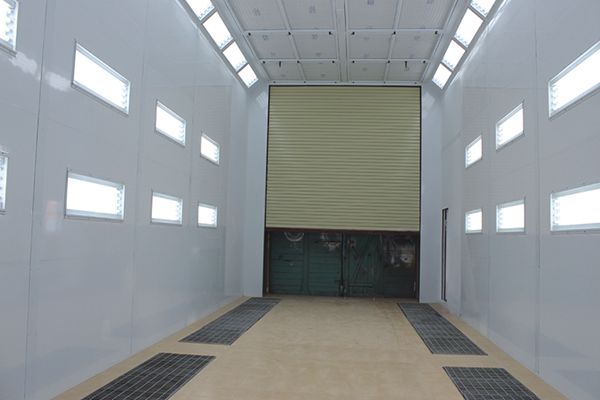

Electric roll-up door Electric roll-up door

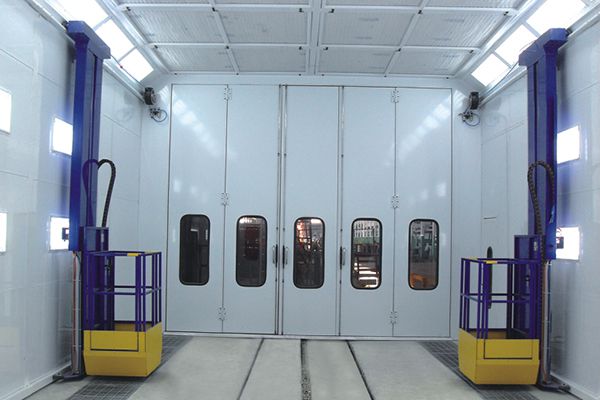

Multi-fold door Multi-fold door

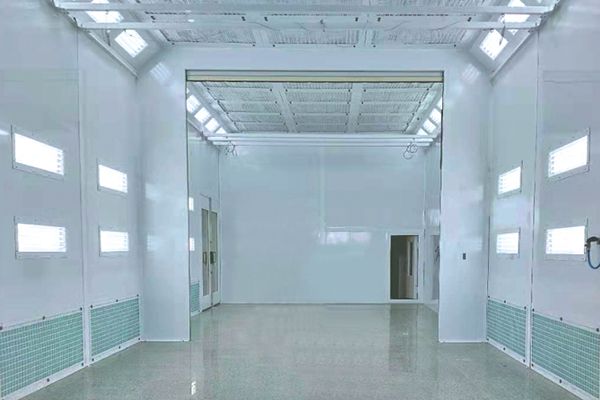

Hydraulic vertical lift door Hydraulic vertical lift door
Case Examples

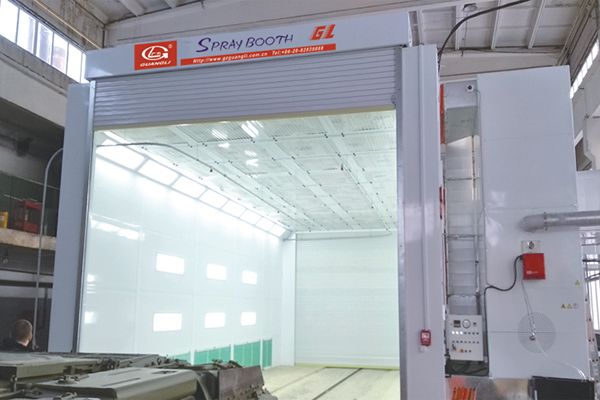

Electric roll-up door

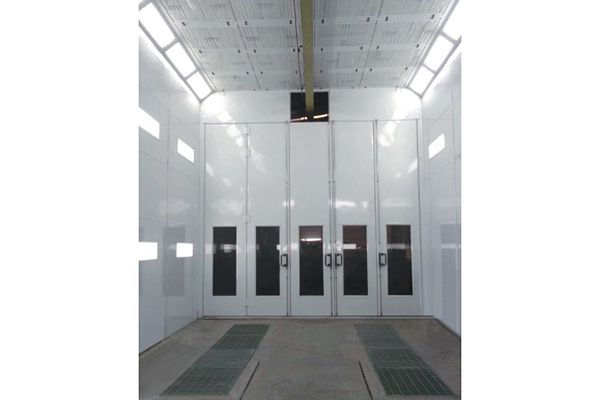

Multi-fold door

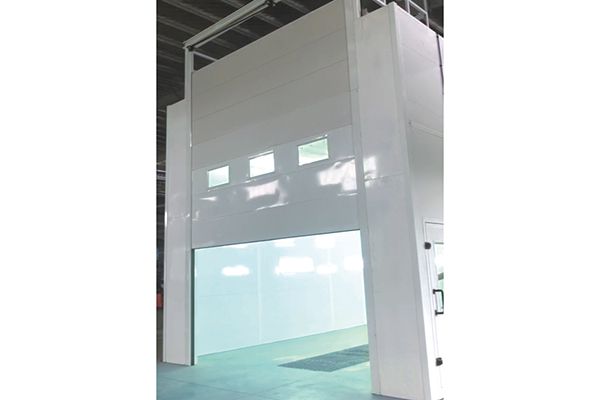

Hydraulic vertical lift door
Hydraulic vertical lift door
Established in 1994, GZ Guangli has been focusing on manufacturing automotive paint booths, bus paint booths and automotive body paint lines for almost three decades. Among the current competition in the country, we are the oldest car spray booth manufacturing factory. Our manufacturing processes for paint booth production covers sheet metal processing, machining, punching, bending, welding, cutting, etc. GZ Guangli is well-known in the industry as it is at the forefront of the productivity and sales over the years in the domestic paint booth market. Our paint booths have been awarded the CE certificate, CCS (China Classification Society) certificate, ETL certificate, CU-TR certificate, SGS certificate, etc. We have provided products and service for a number of customers in automotive industry, such as GAC Toyota, Fiat, GAC Mitsubishi, Dongfeng Peugeot Citroen, Chery Automobile, JAC, Southeast Motor, BMW, Audi, FAW Toyota, FAW Mazda, FAW Hongqi, and more.
