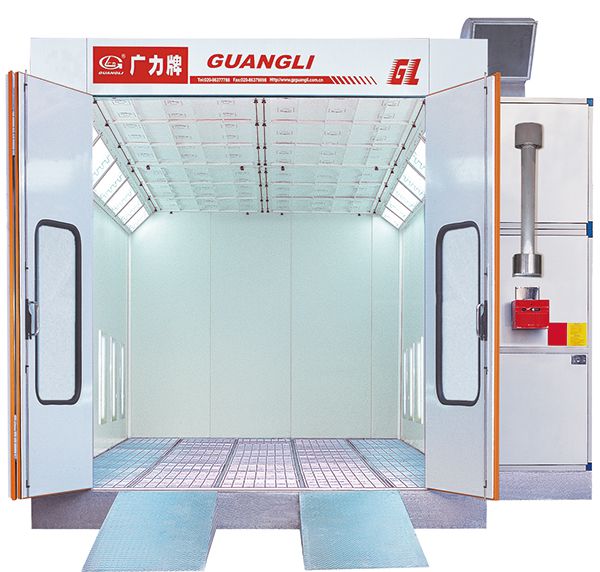

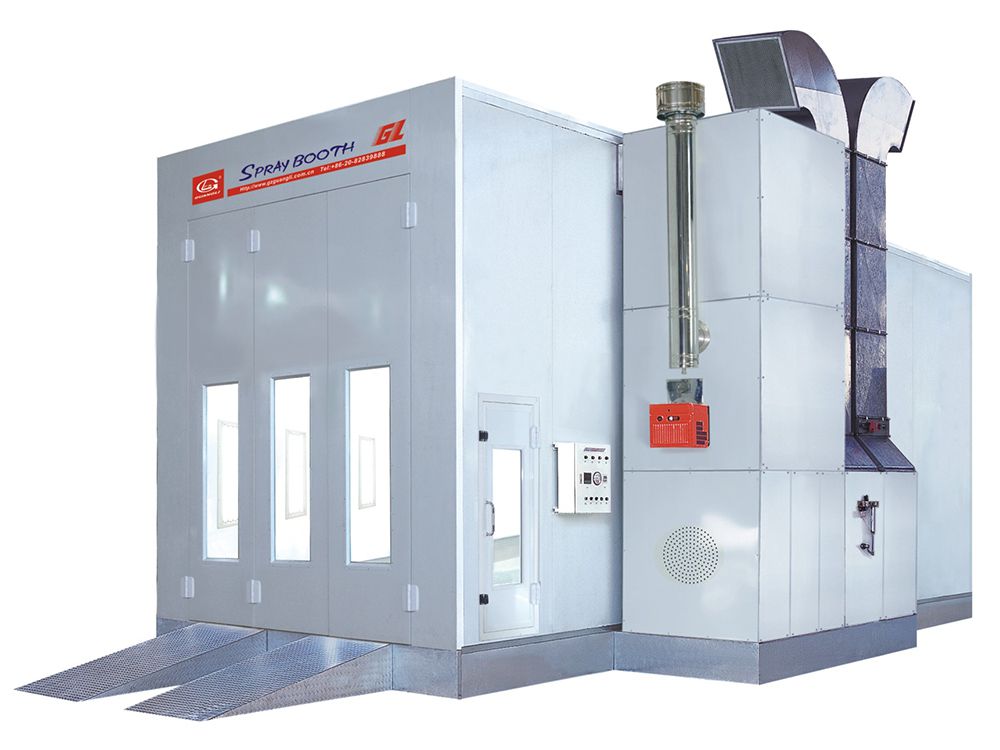

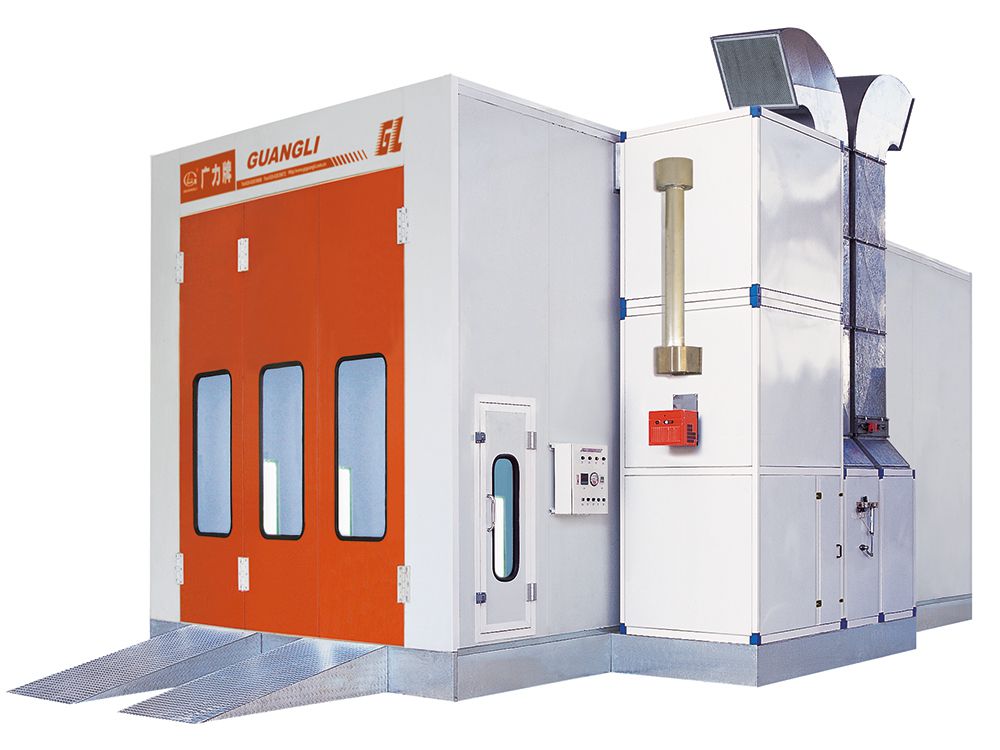

Bus Paint Booth, GL9 Series
Bus Paint Booth, GL9 Series Bus Paint Booth, GL9 Series

Bus Paint Booth, GL9 Series

Our GL9 series bus paint booth is an economical solution for painting small & mid-size buses. This paint booth can be custom built to your specific needs, and it is also a perfect choice for auto manufacturers and body shops who want high quality performance at an affordable price.

Inquiry

Specifications

  • Exterior dimensions: 8.7×5.63×4.23m
  • Interior dimensions: 8.6×4.0×3.4m
  • Access door width: 3.0m
  • Access door height: 3.35m
  • Airflow: 36,000m 3 /h
  • Air speed: 0.25-0.35m/s
  • Curing temperature: 60℃-80℃
  • Power: approx. 21.5kw
  • Applicable vehicle: small & mid-size bus

Standard Configurations

  • Basement: all steel construction raised basement, full grating (2-row grating+3-row checkered plate is optional);
  • Fan unit: one 11kw intake fan, one 11kw exhaust fan;
  • Heating: Riello G20S oil burner (RG5D oil burner or RS5D gas burner), with heat exchanger;
  • Lighting system: upper lights are 12*4*18W LED light tubes, lower lights are 10*4*18W LED light tubes;
  • Wall panel: EPS or rockwool insulated wall panel, thickness 50mm (75mm optional);
  • Electric control: imported electrical components, star delta starting of motor;
  • All steel construction raised basement (5-row grating)

    All steel construction raised basement (5-row grating)

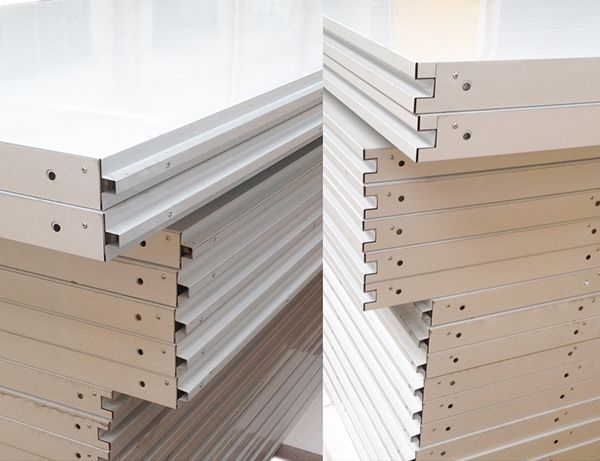

  • Rockwool insulated wall panel (one-step forming of sheet metal, four-side edge banding)

    Rockwool insulated wall panel (one-step forming of sheet metal, four-side edge banding)

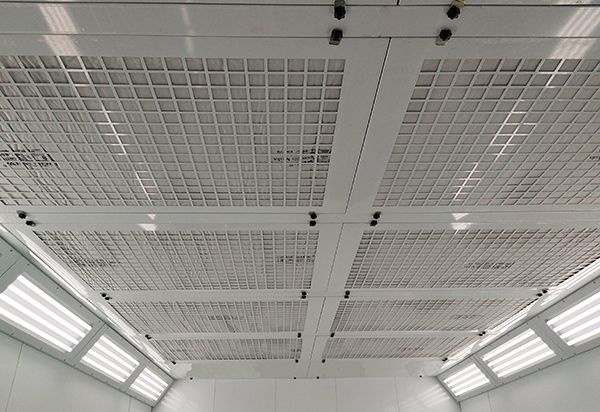

  • Precision punched steel ceiling panels

    Precision punched steel ceiling panels

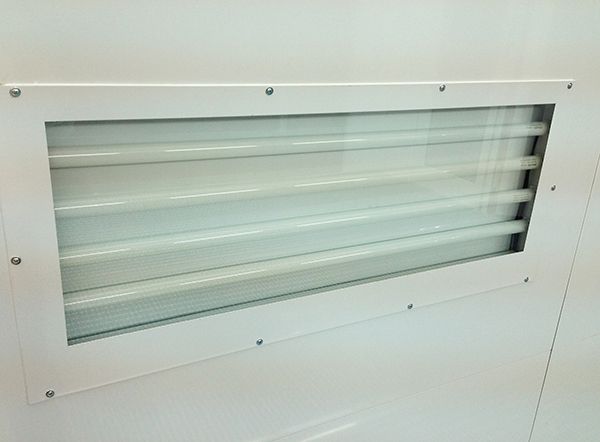

  • Light box (sheet metal is molded by one-step process, each light box can work independently, featuring anti-rust and explosion-proof structure)

    Light box (sheet metal is molded by one-step process, each light box can work independently, featuring anti-rust and explosion-proof structure)

Established in 1994, GZ Guangli has been focusing on manufacturing automotive paint booths, bus paint booths and automotive body paint lines for almost three decades. Among the current competition in the country, we are the oldest car spray booth manufacturing factory. Our manufacturing processes for paint booth production covers sheet metal processing, machining, punching, bending, welding, cutting, etc. GZ Guangli is well-known in the industry as it is at the forefront of the productivity and sales over the years in the domestic paint booth market. Our paint booths have been awarded the CE certificate, CCS (China Classification Society) certificate, ETL certificate, CU-TR certificate, SGS certificate, etc. We have provided products and service for a number of customers in automotive industry, such as GAC Toyota, Fiat, GAC Mitsubishi, Dongfeng Peugeot Citroen, Chery Automobile, JAC, Southeast Motor, BMW, Audi, FAW Toyota, FAW Mazda, FAW Hongqi, and more.
