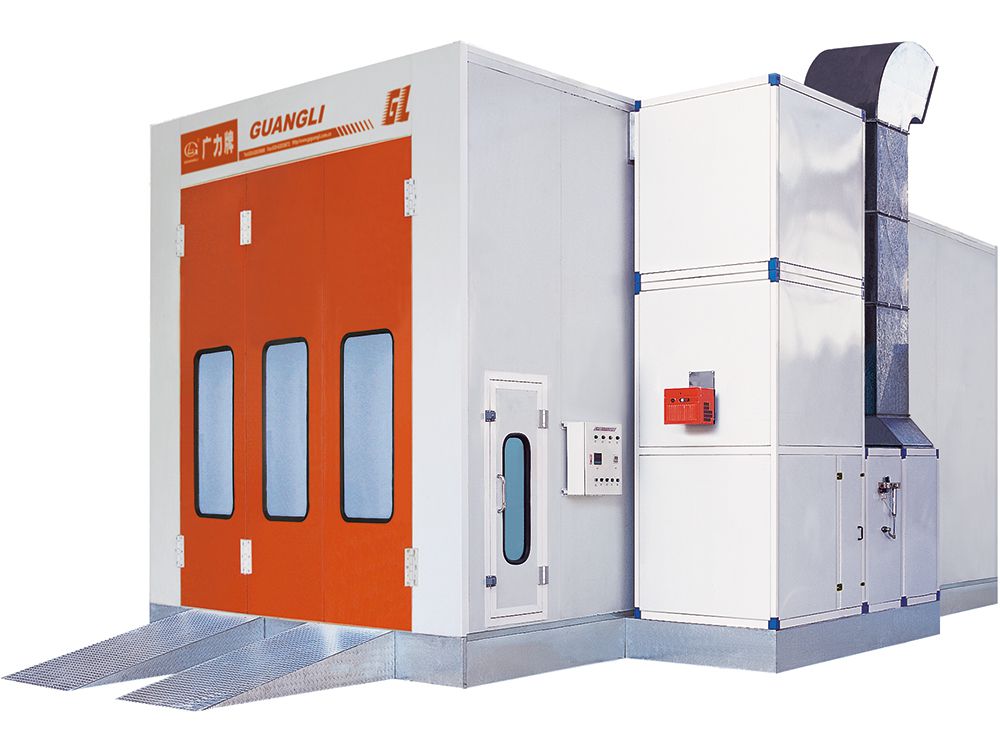

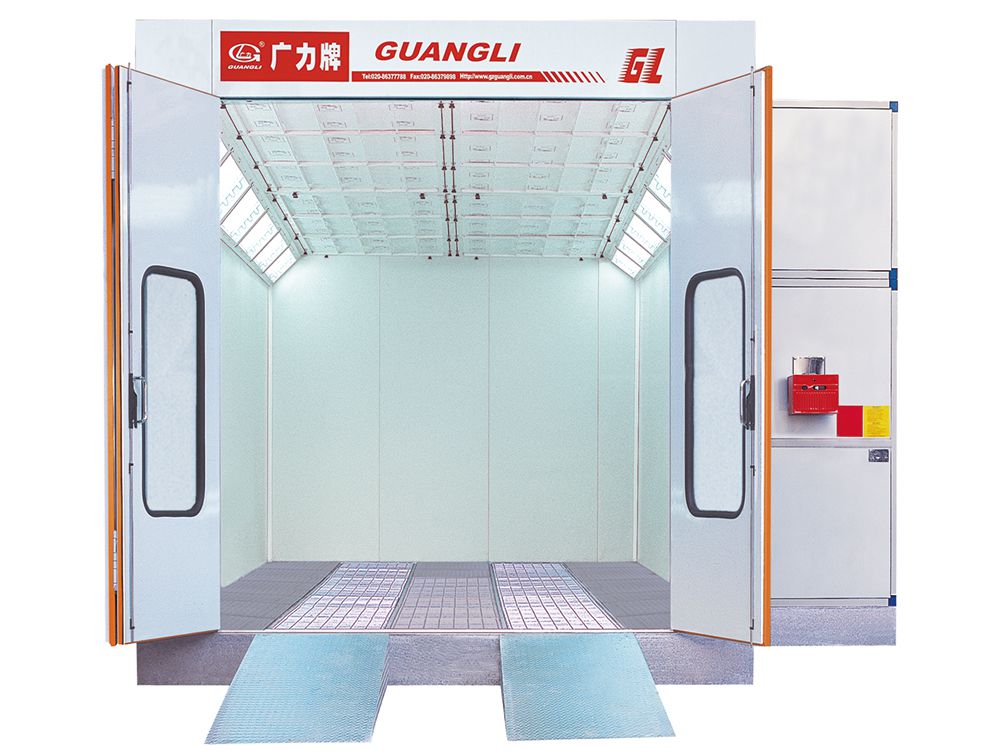

Bus Paint Booth, GL8 Series

Bus Paint Booth, GL8 Series
Bus Paint Booth, GL8 Series Bus Paint Booth, GL8 Series

GZ Guangli manufactures larger size paint booths which are suitable for painting and drying of small & mid-size buses and coaches.

Features

  • All steel construction raised basement;
  • Full downdraft airflow style, ensuring turbulence-free airflow path;
  • Illumination brightness reaches 1000 lux;
  • Oil fuel heating (gas-fired heating, electric central heating, hot water heating and steam heating are optional);
Inquiry

Specifications

  • Exterior dimensions: 8.7×5.63×4.23m
  • Interior dimensions: 8.6×4.0×3.4m
  • Access door width: 3.0m
  • Access door height: 3.35m
  • Airflow: 36,000m 3 /h
  • Air speed: 0.25-0.35m/s
  • Curing temperature: 60℃-80℃
  • Power: approx. 21.5kw
  • Applicable vehicle: small & mid-size bus

Standard Configurations

  • Basement: all steel construction raised basement, full grating (2-row grating+3-row checkered plate is optional);
  • Fan unit: one 11kw intake fan, no exhaust fan;
  • Heating: Riello G20S oil burner (RG5D oil burner or RS5D gas burner), with heat exchanger;
  • Lighting system: upper lights are 12*4*18W LED light tubes, lower lights are 10*4*18W LED light tubes;
  • Wall panel: EPS insulated wall panel, thickness 50mm;
  • Ceiling structure: welded ceiling frame;
  • Roof panel: single-skin galvanized steel roof panel;
  • Electric control: phase loss protection, overheat protection and overload protection, reduced-voltage starting of motor;

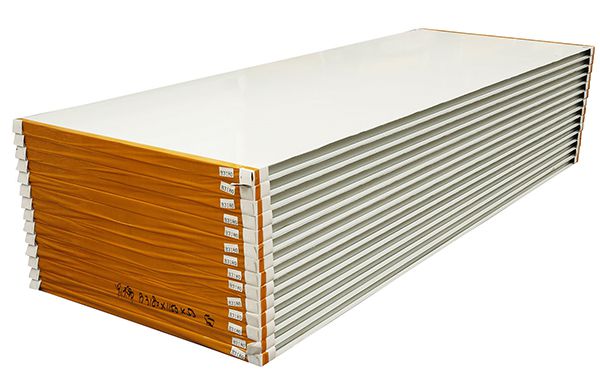

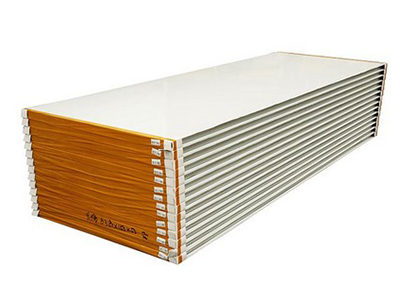

EPS insulated wall panel EPS insulated wall panel

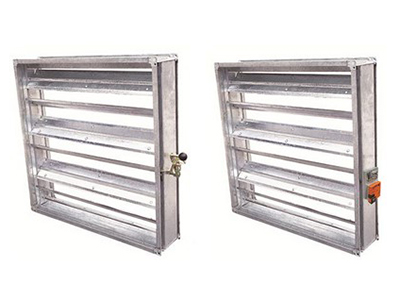

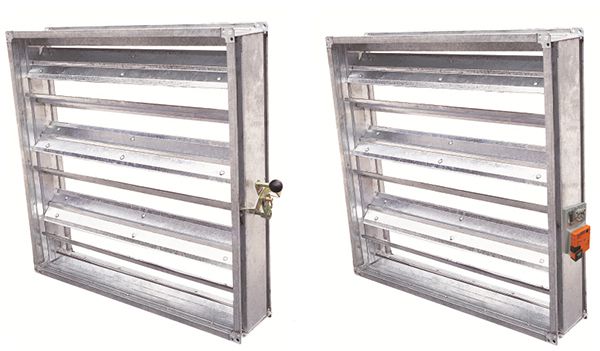

Volume control damper (VCD) Volume control damper (VCD)

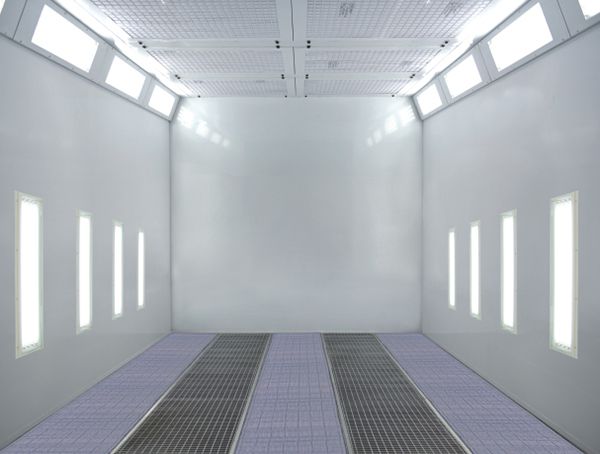

All steel construction raised basement (2-row grating+3-row checkered plate) All steel construction raised basement (2-row grating+3-row checkered plate)

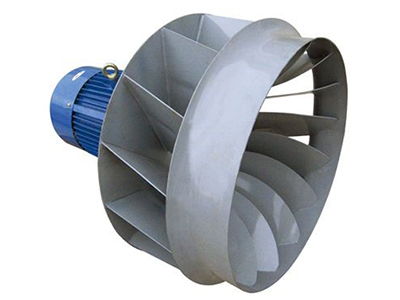

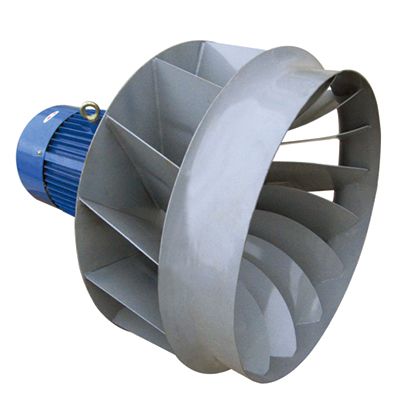

European-style fan European-style fan

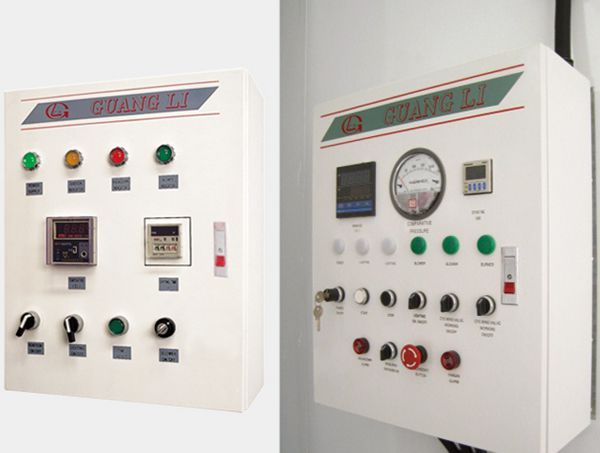

Electric control panel Electric control panel

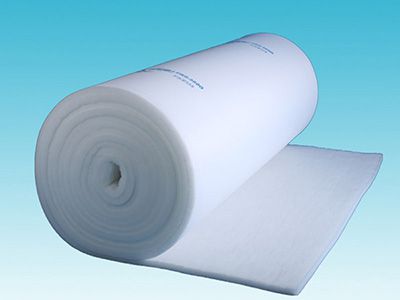

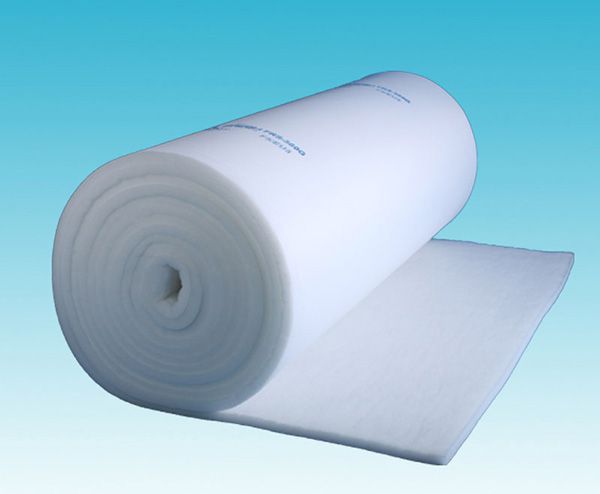

Ceiling filter Ceiling filter
Established in 1994, GZ Guangli has been focusing on manufacturing automotive paint booths, bus paint booths and automotive body paint lines for almost three decades. Among the current competition in the country, we are the oldest car spray booth manufacturing factory. Our manufacturing processes for paint booth production covers sheet metal processing, machining, punching, bending, welding, cutting, etc. GZ Guangli is well-known in the industry as it is at the forefront of the productivity and sales over the years in the domestic paint booth market. Our paint booths have been awarded the CE certificate, CCS (China Classification Society) certificate, ETL certificate, CU-TR certificate, SGS certificate, etc. We have provided products and service for a number of customers in automotive industry, such as GAC Toyota, Fiat, GAC Mitsubishi, Dongfeng Peugeot Citroen, Chery Automobile, JAC, Southeast Motor, BMW, Audi, FAW Toyota, FAW Mazda, FAW Hongqi, and more.
