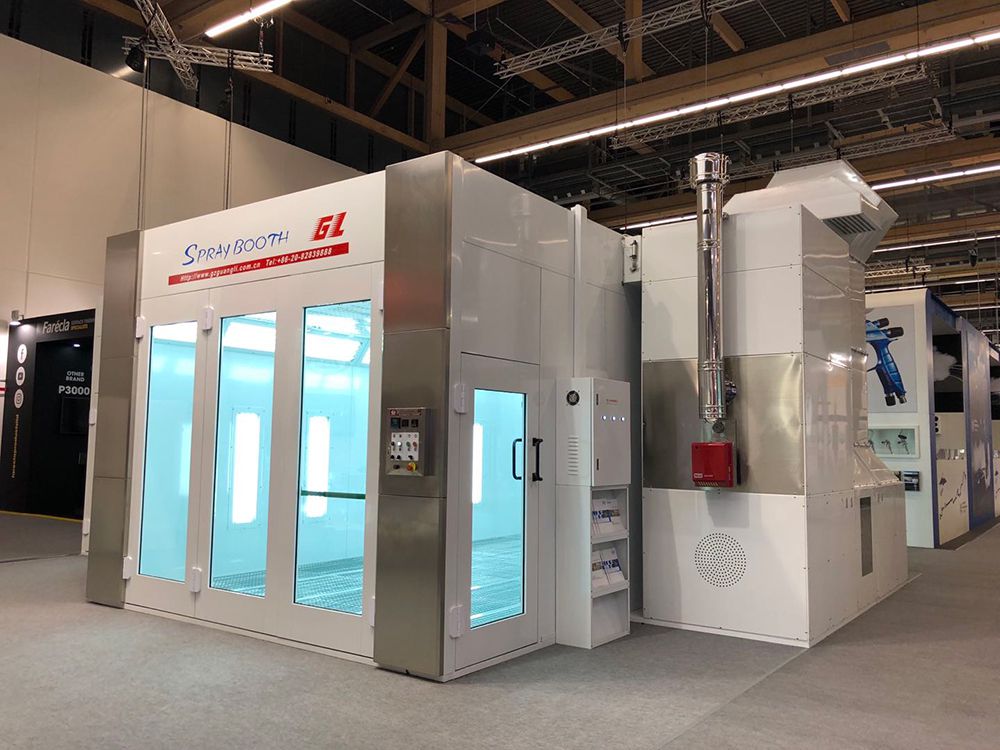

Automotive Paint Booth, GL-OB Series

Automotive Paint Booth, GL-OB Series
Automotive Paint Booth, GL-OB Series Automotive Paint Booth, GL-OB Series

Features

  • All steel construction raised basement;
  • Full downdraft airflow style, ensuring turbulence-free airflow path;
  • Illumination brightness reaches 1200 lux;
  • Oil fuel heating (gas-fired heating, electric central heating, hot water heating and steam heating are optional);
  • Sheet metal is processed to European standards;
Inquiry

Specifications

  • Exterior dimensions: 7.134×5.35×3.5m
  • Interior dimensions: 7.0×4.0×2.7m
  • Access door width: 3.0m
  • Access door height: 2.66m
  • Airflow: 25,000m 3 /h
  • Air speed: 0.25-0.30 m/s
  • Power: approx. 17kw
  • Applicable vehicle: sedan car

Standard Configurations

  • Basement: all steel construction raised basement, 5-row grating;
  • Fan unit: one 7.5kw intake fan, one 7.5kw exhaust fan;
  • Heating: Riello RG5D burner, with heat exchanger;
  • Lighting system: upper lights are 14*4*13W LED light tubes, lower lights are 10*4*13W LED light tubes;
  • Wall panel: sheet metal is molded by one-step process, four-side edge banded rockwool insulated wall panel, thickness 50mm
  • Ceiling structure: 14 pieces of precision punched steel panels
  • Roof panel: double-skin insulated roof panel
  • Electric control: imported electrical components, phase loss protection, overheat protection and overload protection, star delta starting of motor (or soft starting);

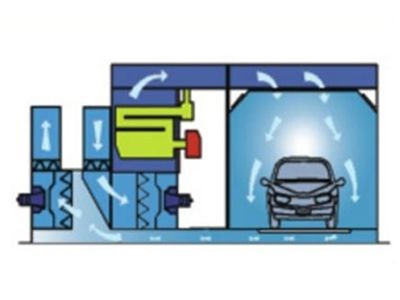

Full downdraft Full downdraft

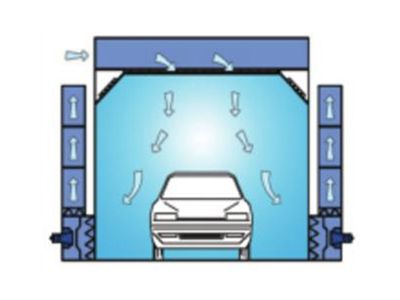

Side downdraft (optional) Side downdraft (optional)

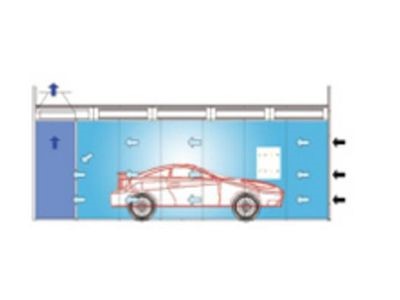

Crossdraft (optional) Crossdraft (optional)

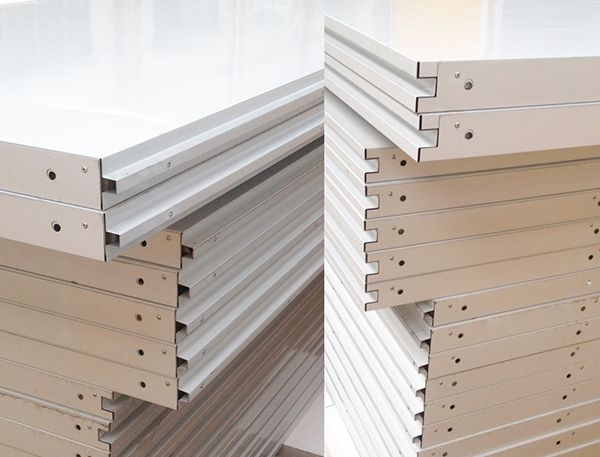

  • Rockwool insulated wall panel (one-step forming of sheet metal, four-side edge banding)

    Rockwool insulated wall panel (one-step forming of sheet metal, four-side edge banding)

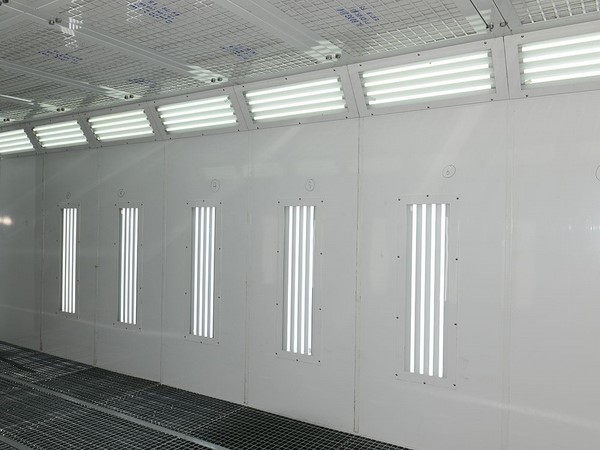

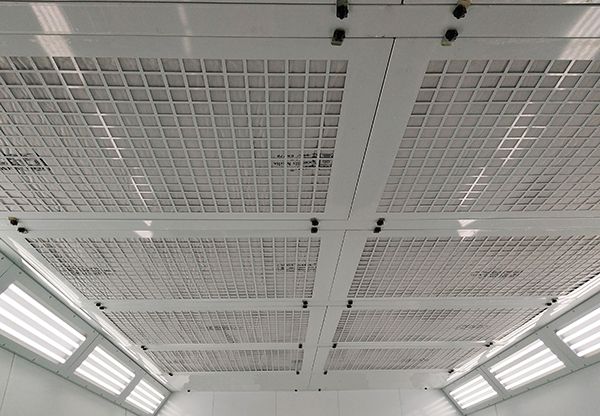

  • Precision punched steel ceiling panels

    Precision punched steel ceiling panels

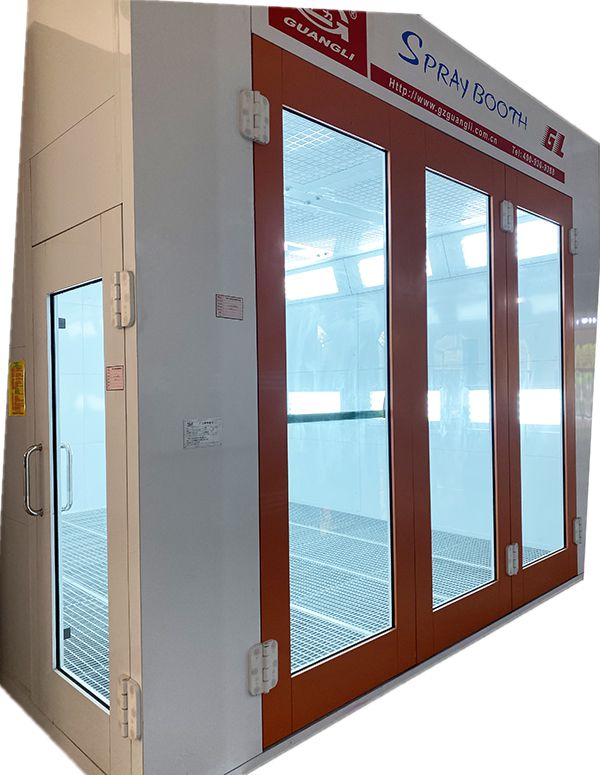

  • Access door (manufactured by automatic production line utilizing micro-​joining process with weld-free design, resulting in increased panel stiffness)

    Access door (manufactured by automatic production line utilizing micro-​joining process with weld-free design, resulting in increased panel stiffness)

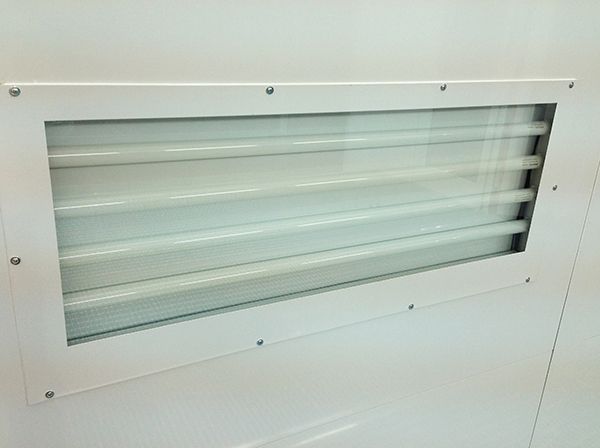

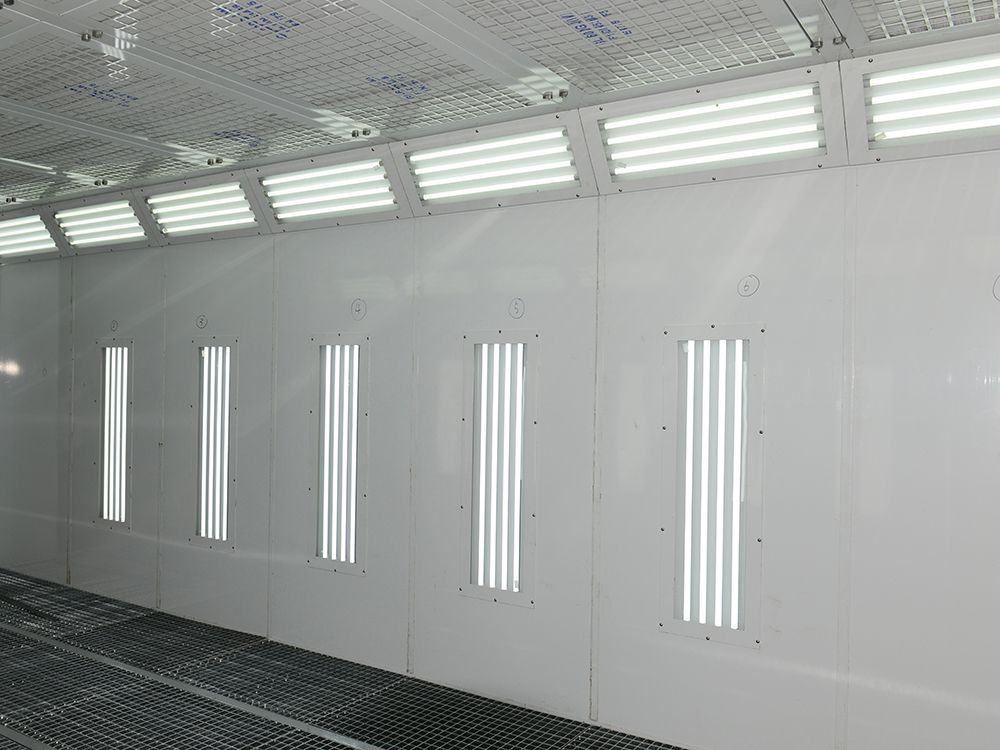

  • Light box (sheet metal is molded by one-step process, each light box can work independently, featuring anti-rust and explosion-proof structure)

    Light box (sheet metal is molded by one-step process, each light box can work independently, featuring anti-rust and explosion-proof structure)

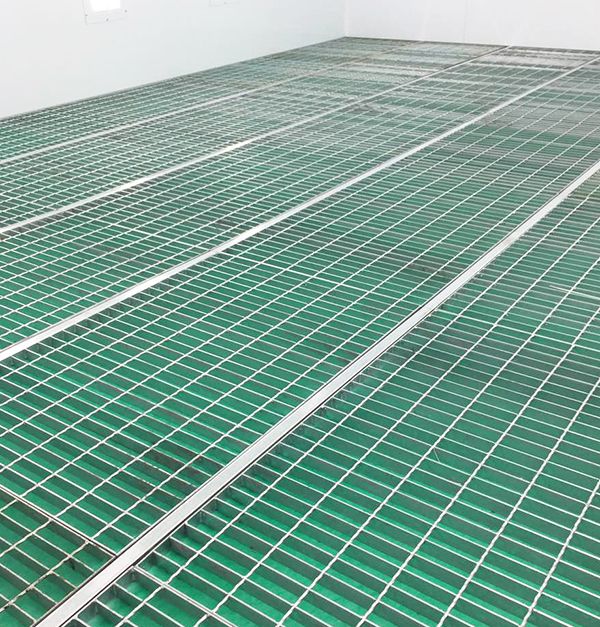

  • All steel construction raised basement (5-row grating)

    All steel construction raised basement (5-row grating)

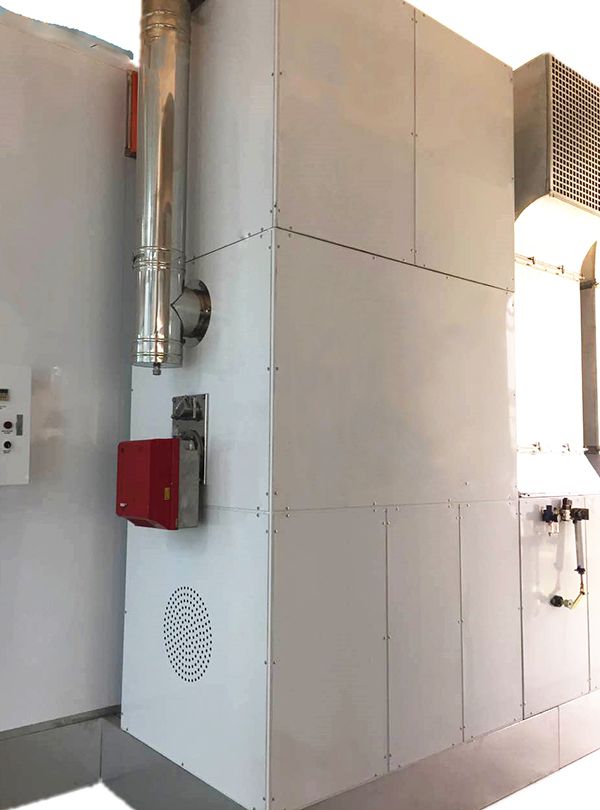

  • Fan unit enclosure (sheet metal is molded by one-step process, high toughness with superior look)

    Fan unit enclosure (sheet metal is molded by one-step process, high toughness with superior look)

Established in 1994, GZ Guangli has been focusing on manufacturing automotive paint booths, bus paint booths and automotive body paint lines for almost three decades. Among the current competition in the country, we are the oldest car spray booth manufacturing factory. Our manufacturing processes for paint booth production covers sheet metal processing, machining, punching, bending, welding, cutting, etc. GZ Guangli is well-known in the industry as it is at the forefront of the productivity and sales over the years in the domestic paint booth market. Our paint booths have been awarded the CE certificate, CCS (China Classification Society) certificate, ETL certificate, CU-TR certificate, SGS certificate, etc. We have provided products and service for a number of customers in automotive industry, such as GAC Toyota, Fiat, GAC Mitsubishi, Dongfeng Peugeot Citroen, Chery Automobile, JAC, Southeast Motor, BMW, Audi, FAW Toyota, FAW Mazda, FAW Hongqi, and more.
