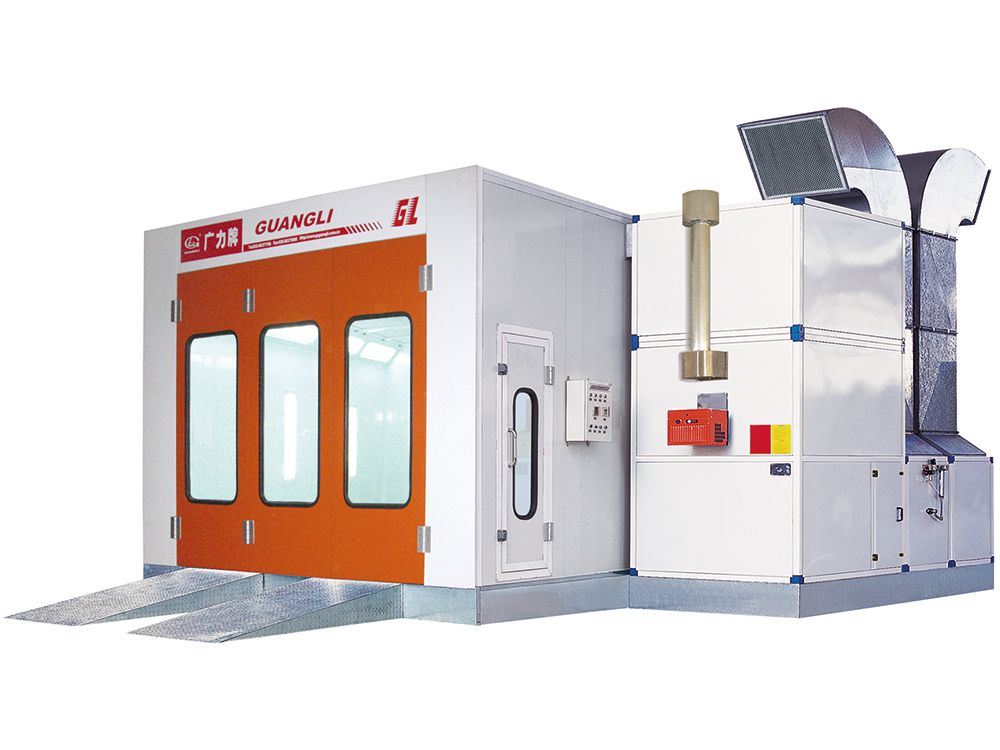

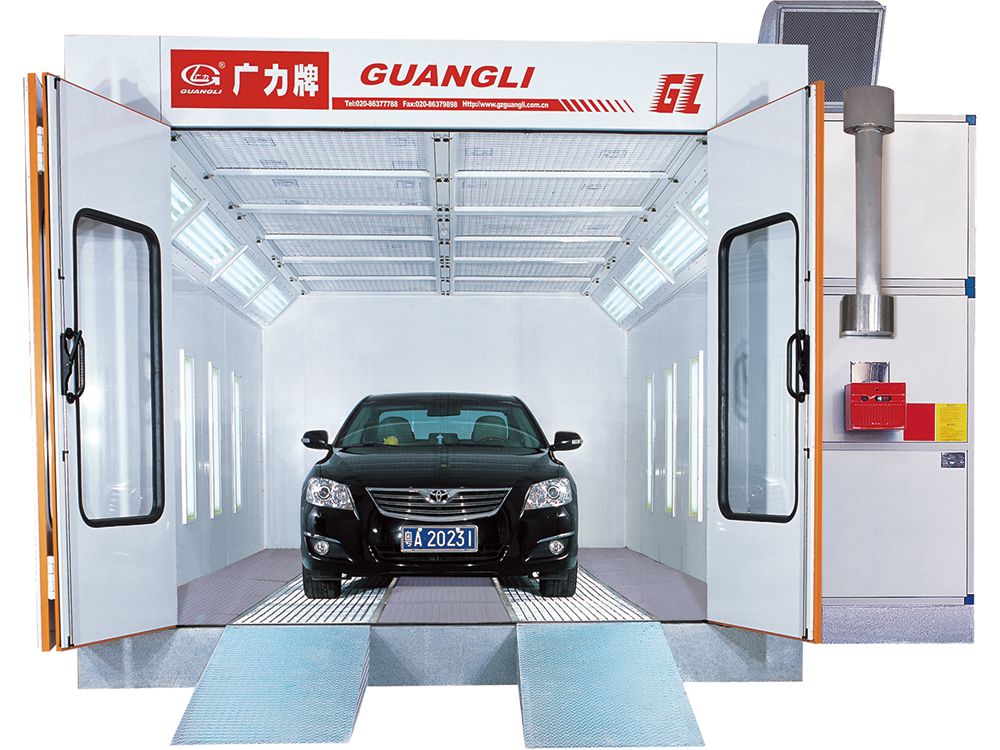

Automotive Paint Booth, GL2-N2 Series

Automotive Paint Booth, GL2-N2 Series
Automotive Paint Booth, GL2-N2 Series Automotive Paint Booth, GL2-N2 Series

Features

  • All steel construction raised basement;
  • Full downdraft airflow style, ensuring turbulence-free airflow path;
  • Illumination brightness reaches 1000 lux;
  • Oil fuel heating (gas-fired heating, electric central heating, hot water heating and steam heating are optional);
Inquiry

Specifications

  • Exterior dimensions: 7.0×5.3×3.5m
  • Interior dimensions: 6.9×3.9×2.7m
  • Access door width: 3.0m
  • Access door height: 2.66m
  • Airflow: 18,000m 3 /h
  • Air speed: 0.25-0.30 m/s
  • Power: approx. 13kw
  • Applicable vehicle: sedan car

Standard Configurations

  • Basement: all steel construction raised basement, 2-row grating+3-row checkered plate;
  • Fan unit: one 5.5kw intake fan, one 5.5kw exhaust fan;
  • Heating: Riello G20 burner, with heat exchanger;
  • Lighting system: upper lights are 8*4*18W LED light tubes, lower lights are 8*2*18W LED light tubes;
  • Wall panel: EPS insulated wall panel, thickness 50mm;

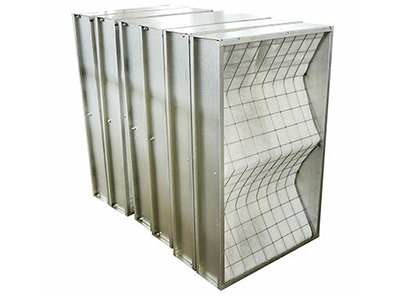

  • Ceiling structure: welded ceiling frame;
  • Roof panel: single-skin galvanized steel roof panel;
  • Electric control: phase loss protection, overheat protection and overload protection, direct starting of motor;

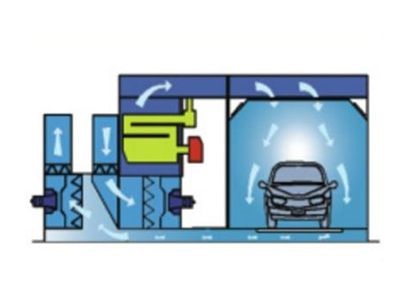

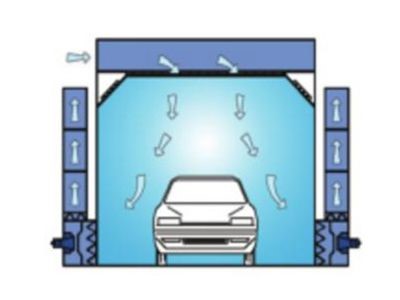

Full downdraft Full downdraft
Side downdraft (optional) Side downdraft (optional)

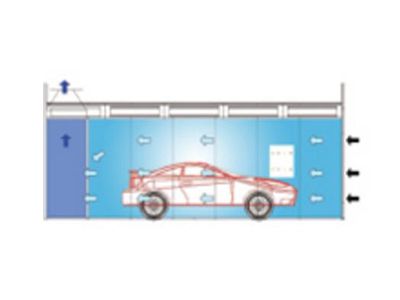

Crossdraft (optional) Crossdraft (optional)

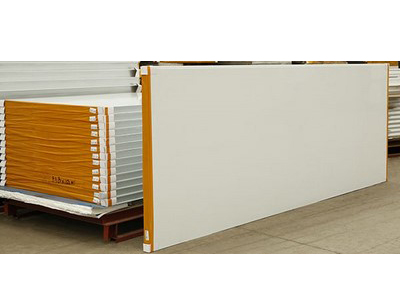

EPS insulated wall panel EPS insulated wall panel

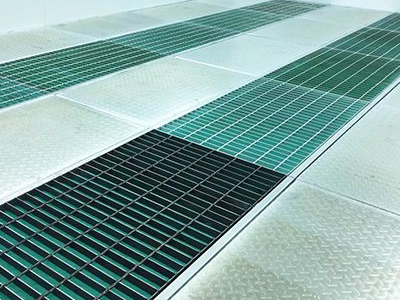

All steel construction raised basement (2-row grating+3-row checkered plate) All steel construction raised basement (2-row grating+3-row checkered plate)

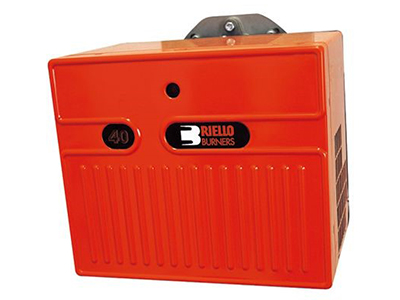

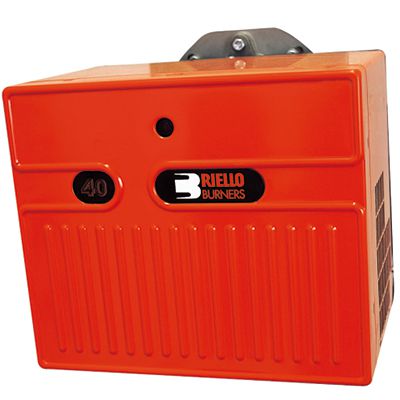

Riello G20 burner Riello G20 burner
Welded ceiling frame Welded ceiling frame

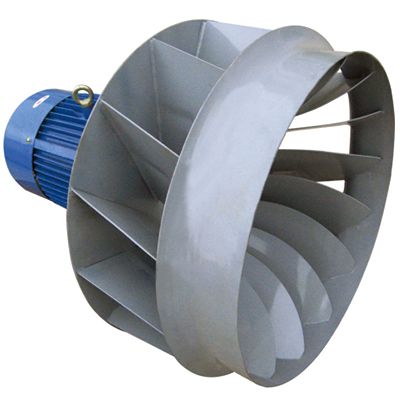

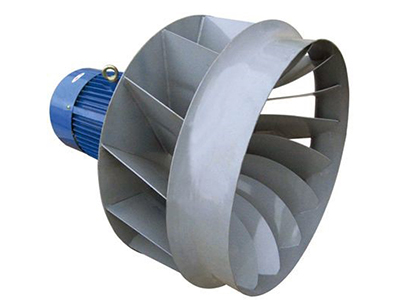

European-style fan European-style fan

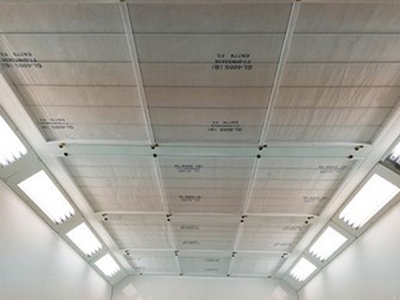

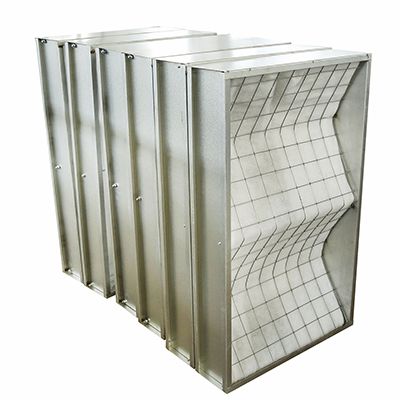

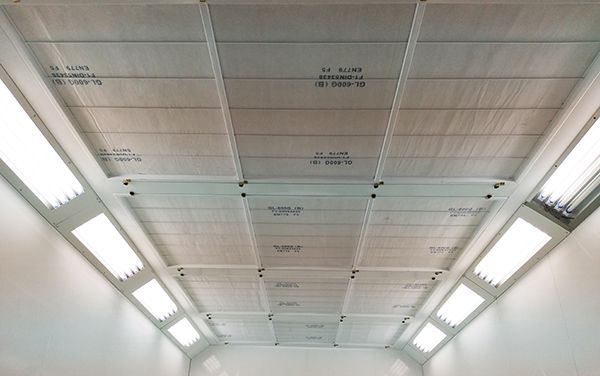

Air inlet cotton Air inlet cotton
Established in 1994, GZ Guangli has been focusing on manufacturing automotive paint booths, bus paint booths and automotive body paint lines for almost three decades. Among the current competition in the country, we are the oldest car spray booth manufacturing factory. Our manufacturing processes for paint booth production covers sheet metal processing, machining, punching, bending, welding, cutting, etc. GZ Guangli is well-known in the industry as it is at the forefront of the productivity and sales over the years in the domestic paint booth market. Our paint booths have been awarded the CE certificate, CCS (China Classification Society) certificate, ETL certificate, CU-TR certificate, SGS certificate, etc. We have provided products and service for a number of customers in automotive industry, such as GAC Toyota, Fiat, GAC Mitsubishi, Dongfeng Peugeot Citroen, Chery Automobile, JAC, Southeast Motor, BMW, Audi, FAW Toyota, FAW Mazda, FAW Hongqi, and more.
