Man Lift for Truck Booth

Man Lift for Truck Booth

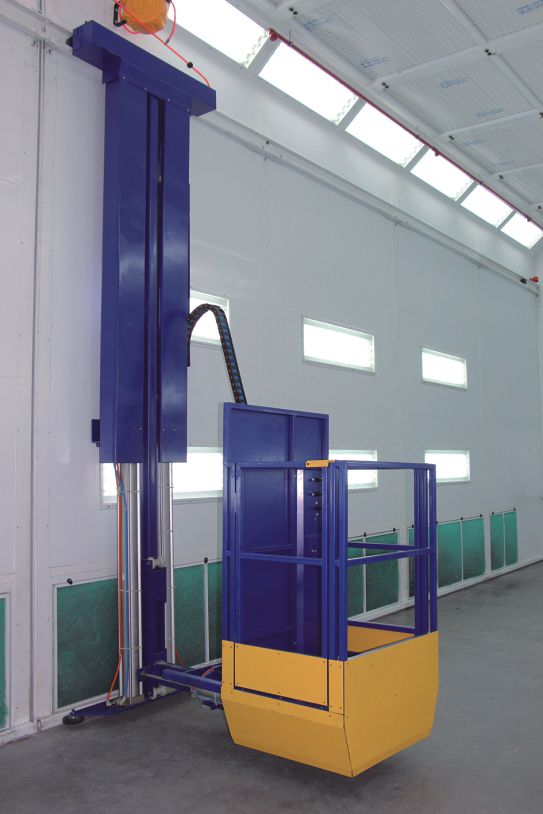

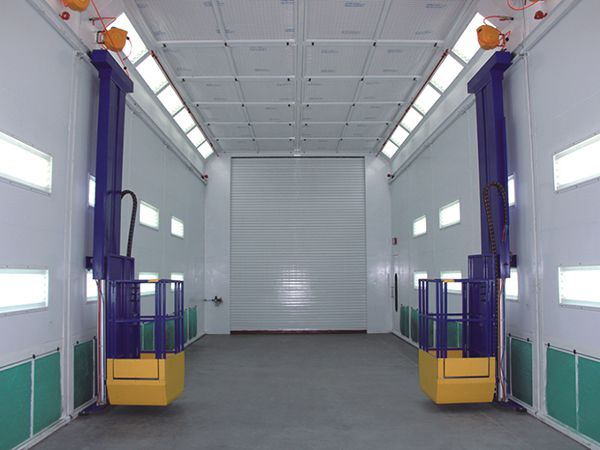

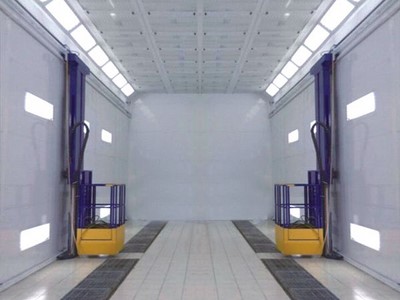

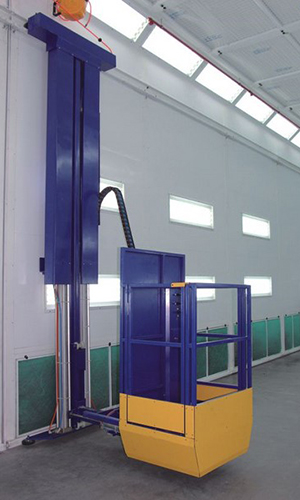

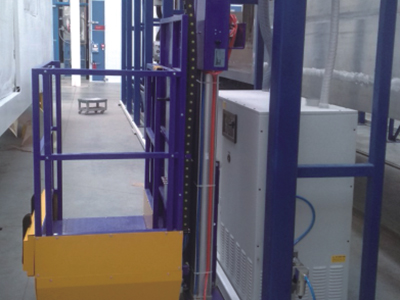

GZ Guangli’s paint booth man lift is a personnel access platform powered by compressed air without the use of any power supply. This man lift allows operator to easily reach the entire paint job by moving up and down, left and right, in and out, achieving three dimensional movement control. The work platform has guardrails at four sides with two gates to ensure the safety of operator. The control handle at platform enable operator to paint, mask, sand or other tasks on vehicles at appropriate height and position.

Inquiry

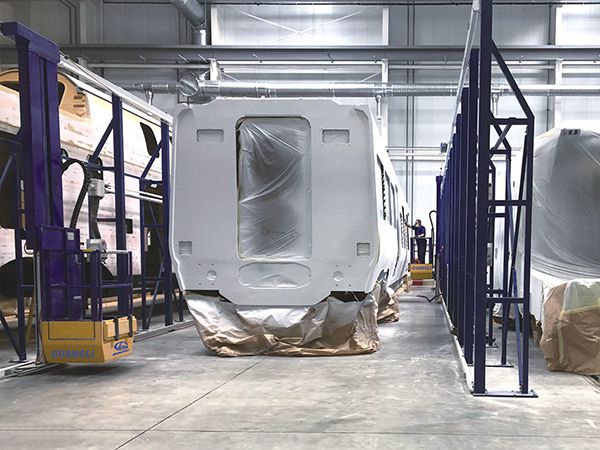

GZ Guangli’s paint booth man lifts can be applied to many large equipment such as buses, trucks, rail cars, aircraft, agricultural and construction equipment.

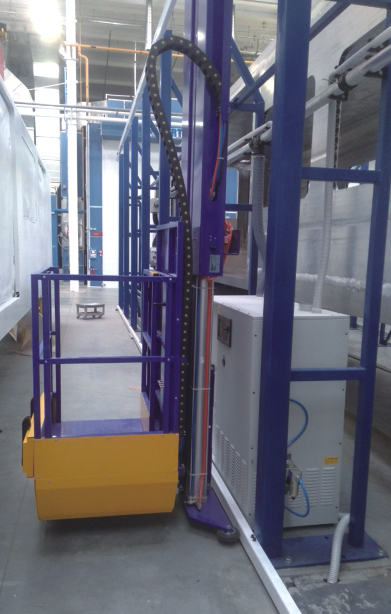

Sanding area
Sanding area

Specifications

  • Model: GL1010
  • Payload: 150kg (1 person)
  • Recommended air pressure: 6-7bar
  • Optimum air pressure: 6.5bar
  • Air consumption: 350L/min
  • Max. lifting height: 3100mm
  • Platform extension: 900mm

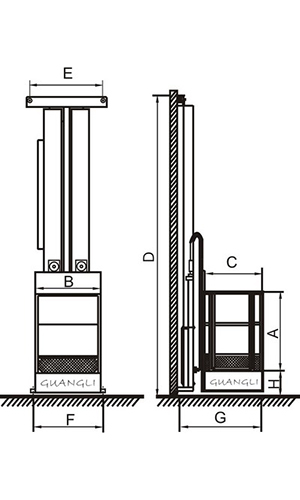

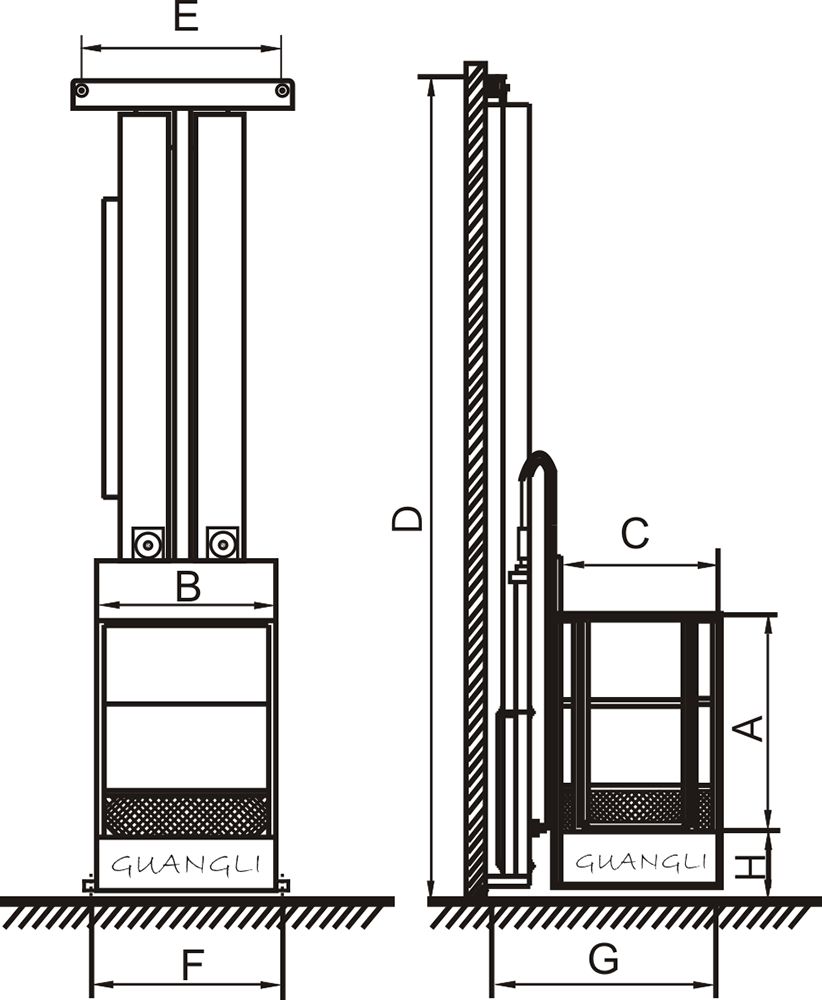

  • Cage dimensions (L×W×H): 900×720×1400mm
Upward moving Upward moving
Downward movingDownward moving

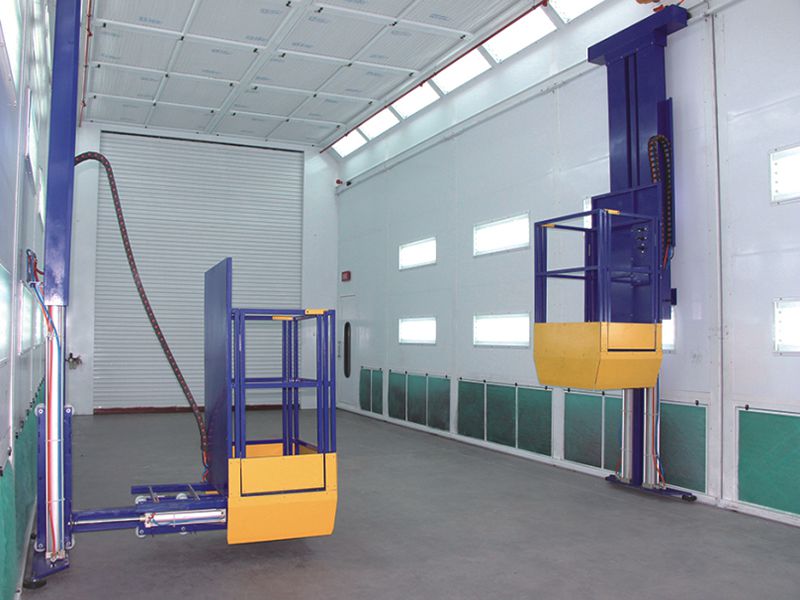

Front and back movingFront and back moving
Right and left movingRight and left moving
Click image to enlarge
Sanding area
Primer surfacer application area
Spray painting area
Baking area
Baking area
Baking area
Established in 1994, GZ Guangli has been focusing on manufacturing automotive paint booths, bus paint booths and automotive body paint lines for almost three decades. Among the current competition in the country, we are the oldest car spray booth manufacturing factory. Our manufacturing processes for paint booth production covers sheet metal processing, machining, punching, bending, welding, cutting, etc. GZ Guangli is well-known in the industry as it is at the forefront of the productivity and sales over the years in the domestic paint booth market. Our paint booths have been awarded the CE certificate, CCS (China Classification Society) certificate, ETL certificate, CU-TR certificate, SGS certificate, etc. We have provided products and service for a number of customers in automotive industry, such as GAC Toyota, Fiat, GAC Mitsubishi, Dongfeng Peugeot Citroen, Chery Automobile, JAC, Southeast Motor, BMW, Audi, FAW Toyota, FAW Mazda, FAW Hongqi, and more.
